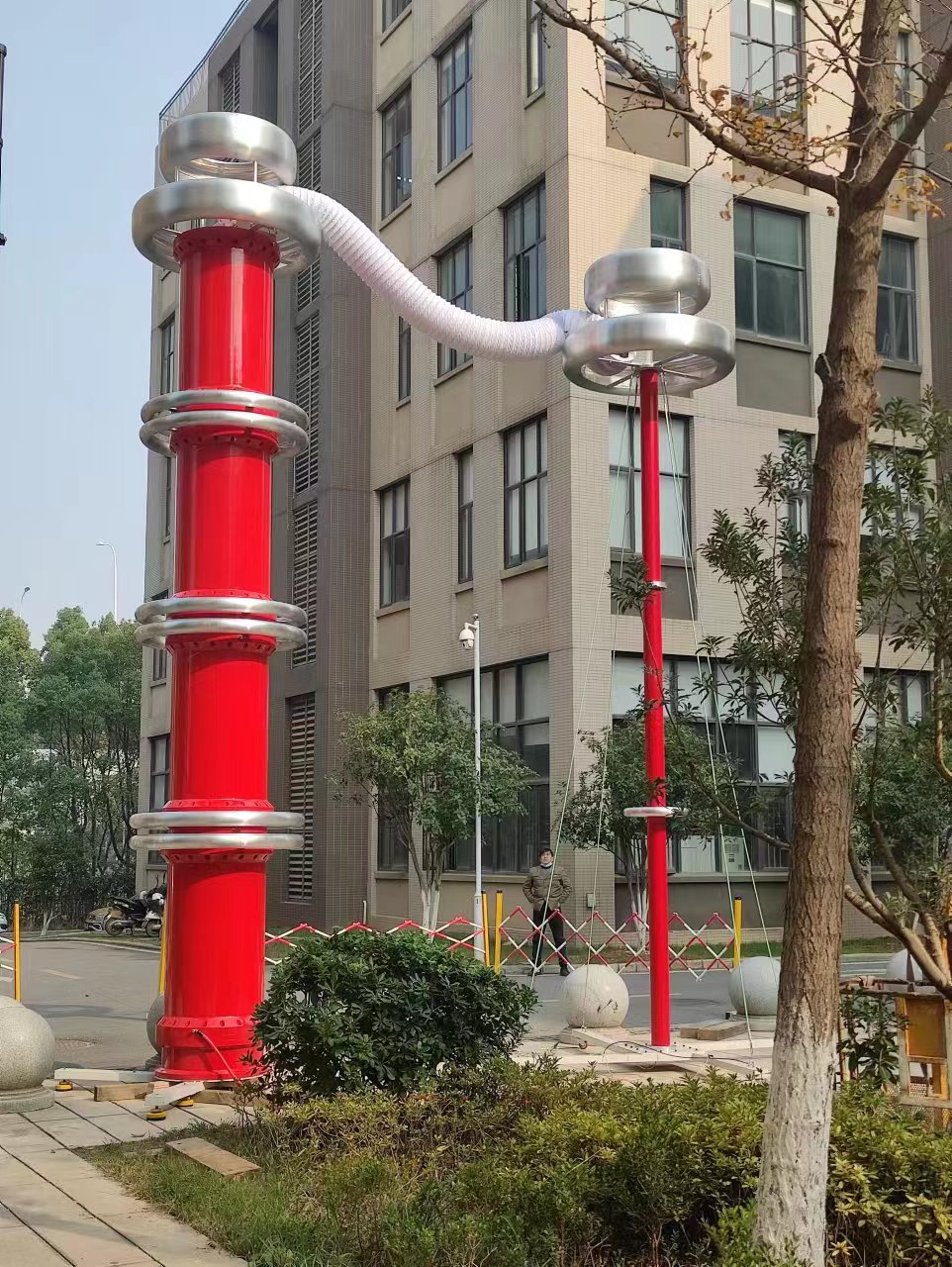

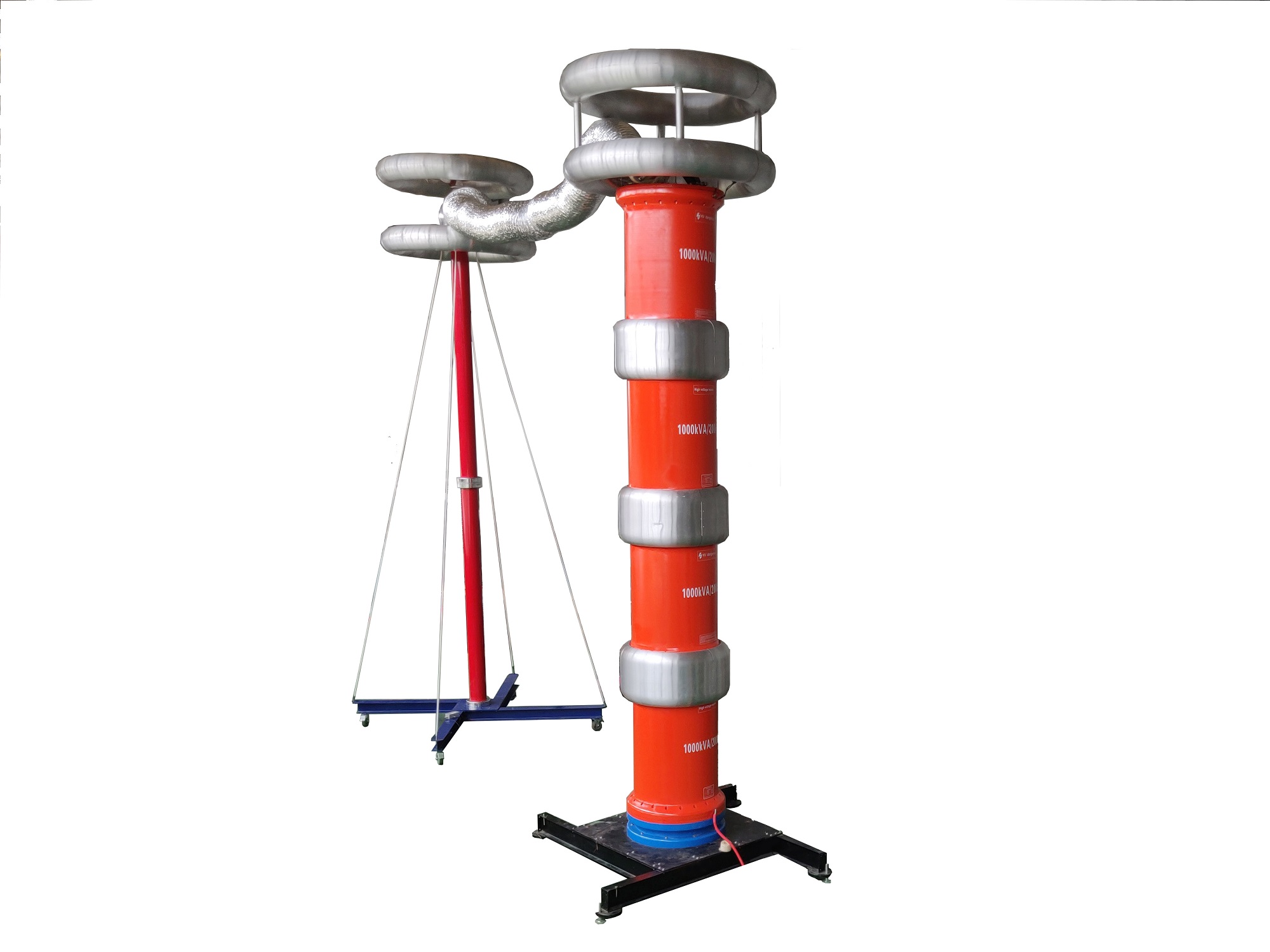

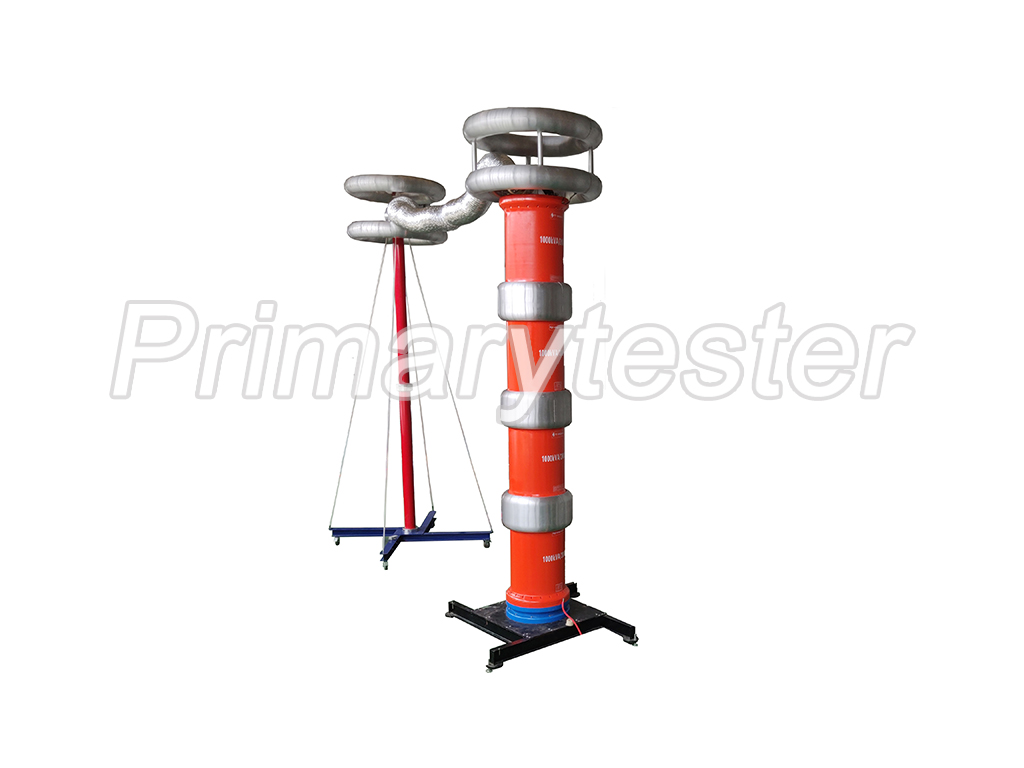

AC resonance test set HYXZ

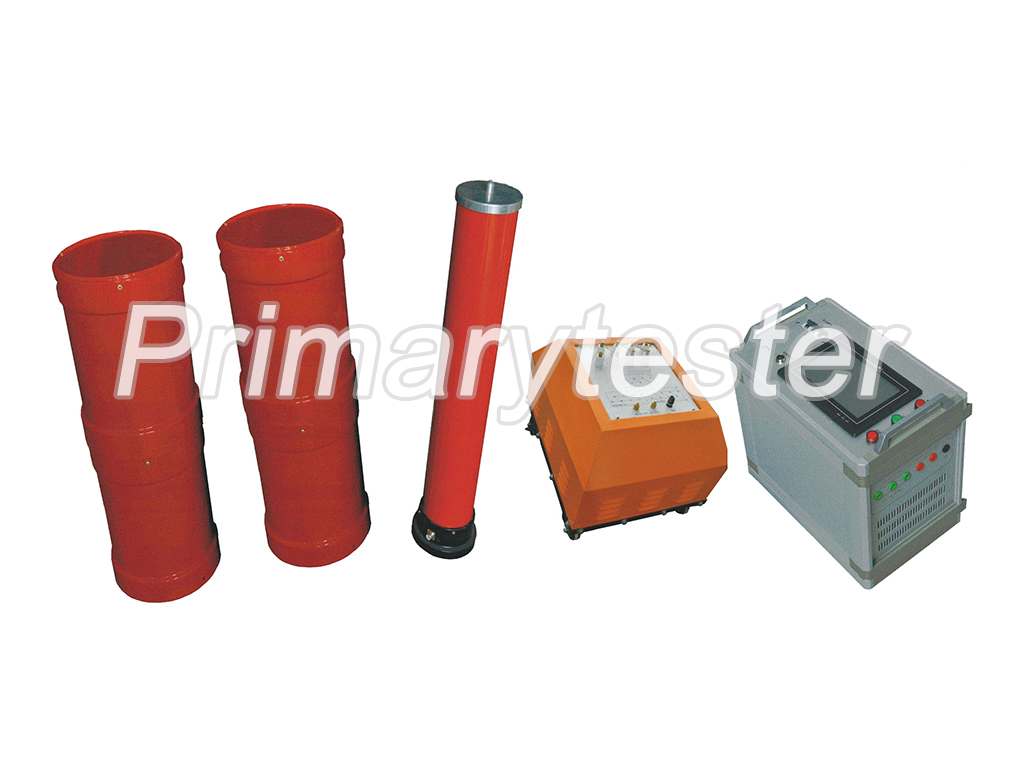

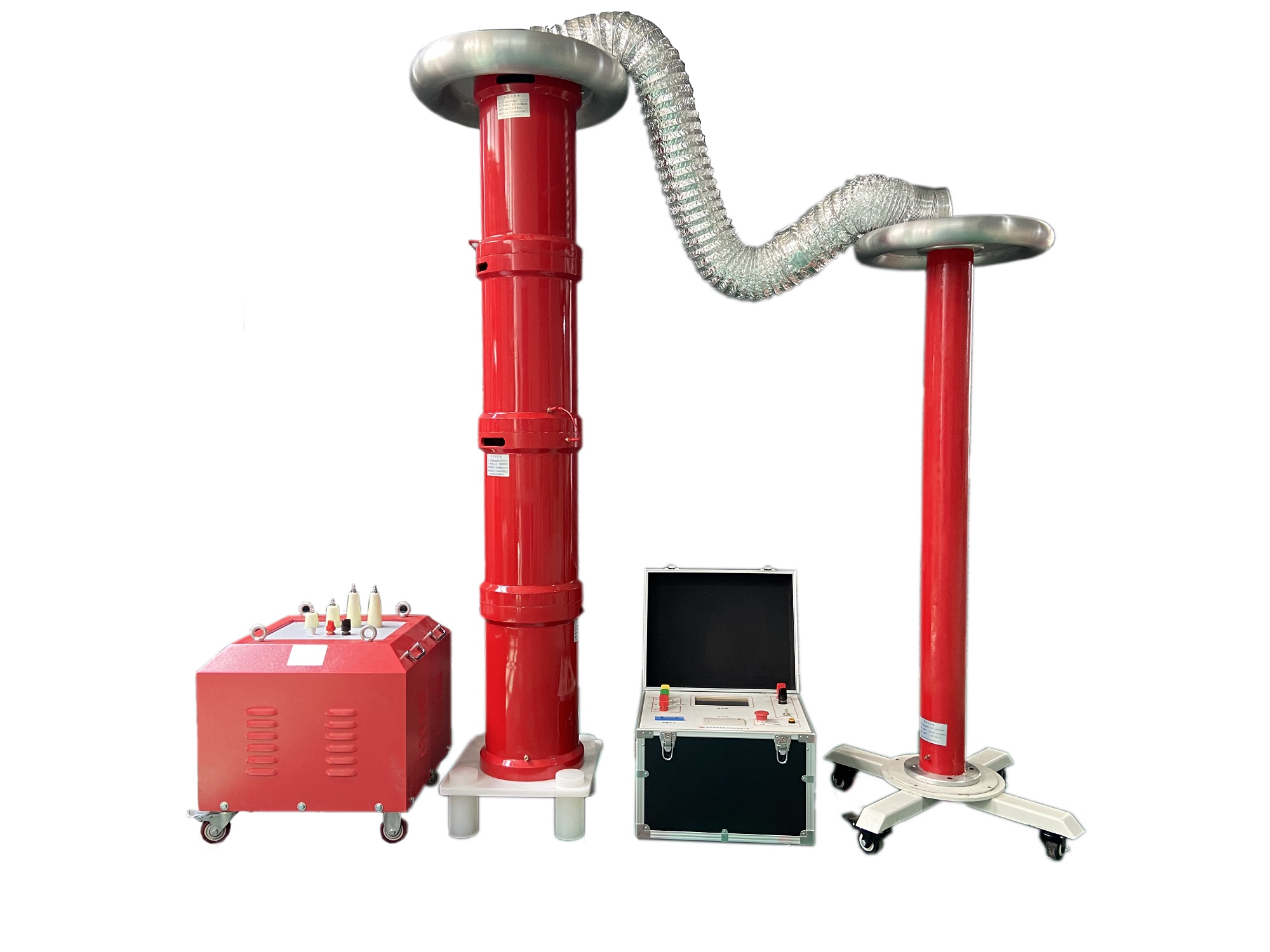

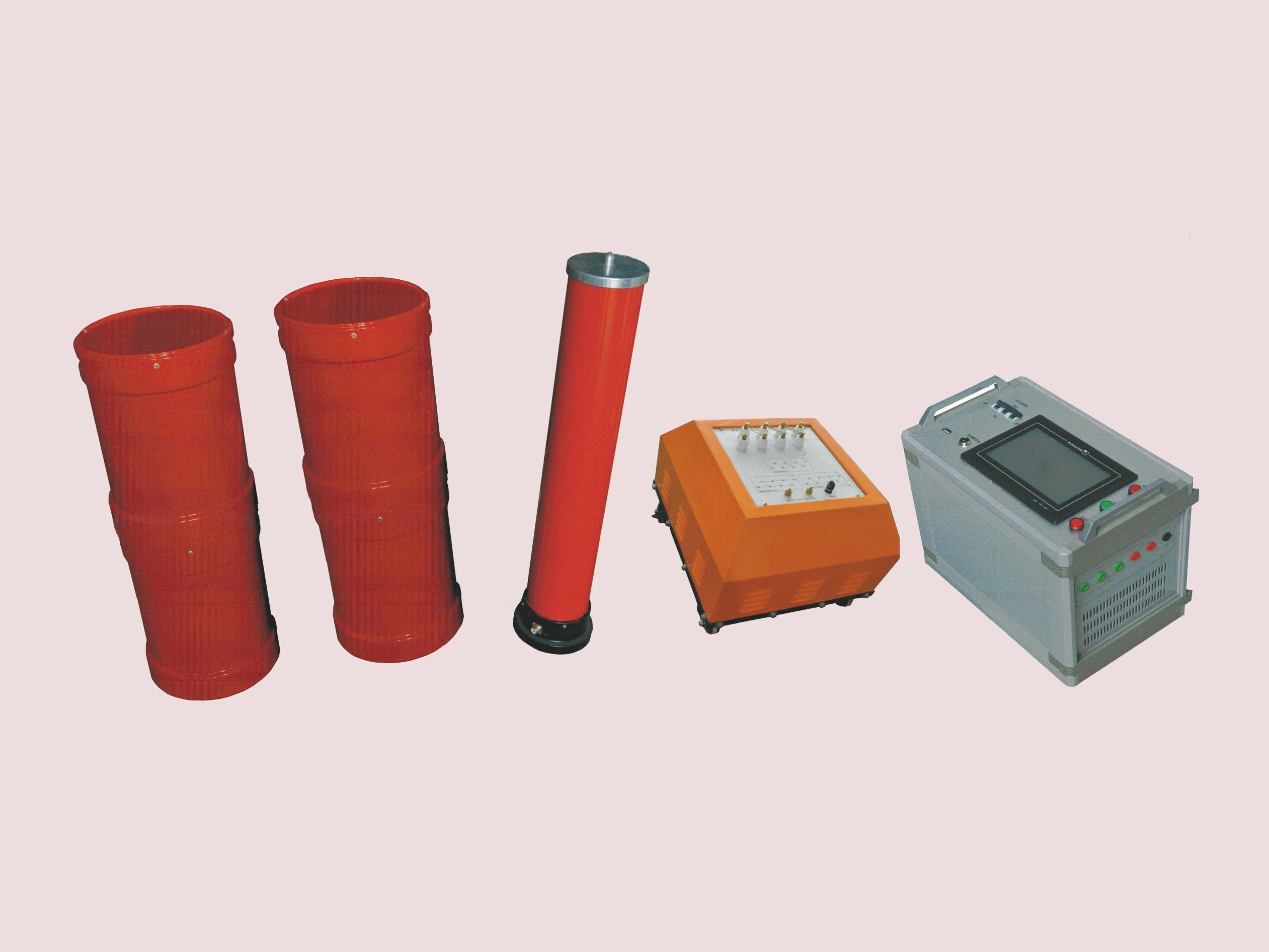

The test set is mainly for cable, main transformer neutral point, GIS, switches whose rated voltage not more than 110kv and other AC high voltage withstand test. The test set consists of variable frequency power supply, excitation transformers, reactors, capacitive voltage divider.

Technical Specification
Power supply380V±10%, three-phase 50Hz/60Hz
Rated voltage output0~1000KV
Max output capacity0~6400KVA
Test frequency range30~300HZ
Continuous duty cycle60min
Quality factor30~80
Frequency setting resolution0.1HZ
Test voltage waveformsine wave, waveform deviation factor : ≤1%
Humidity≤ 90%RH

Product Certificates

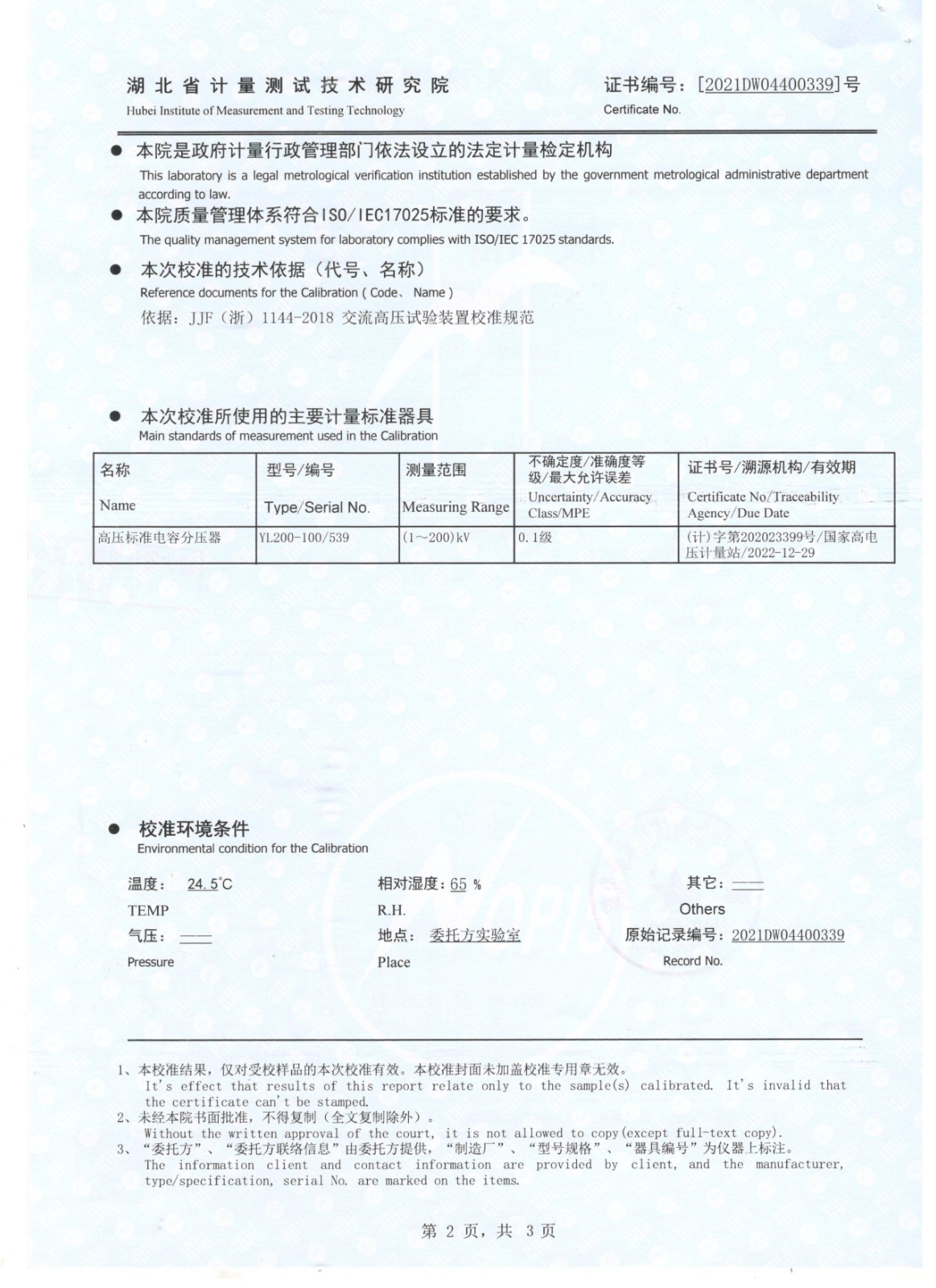

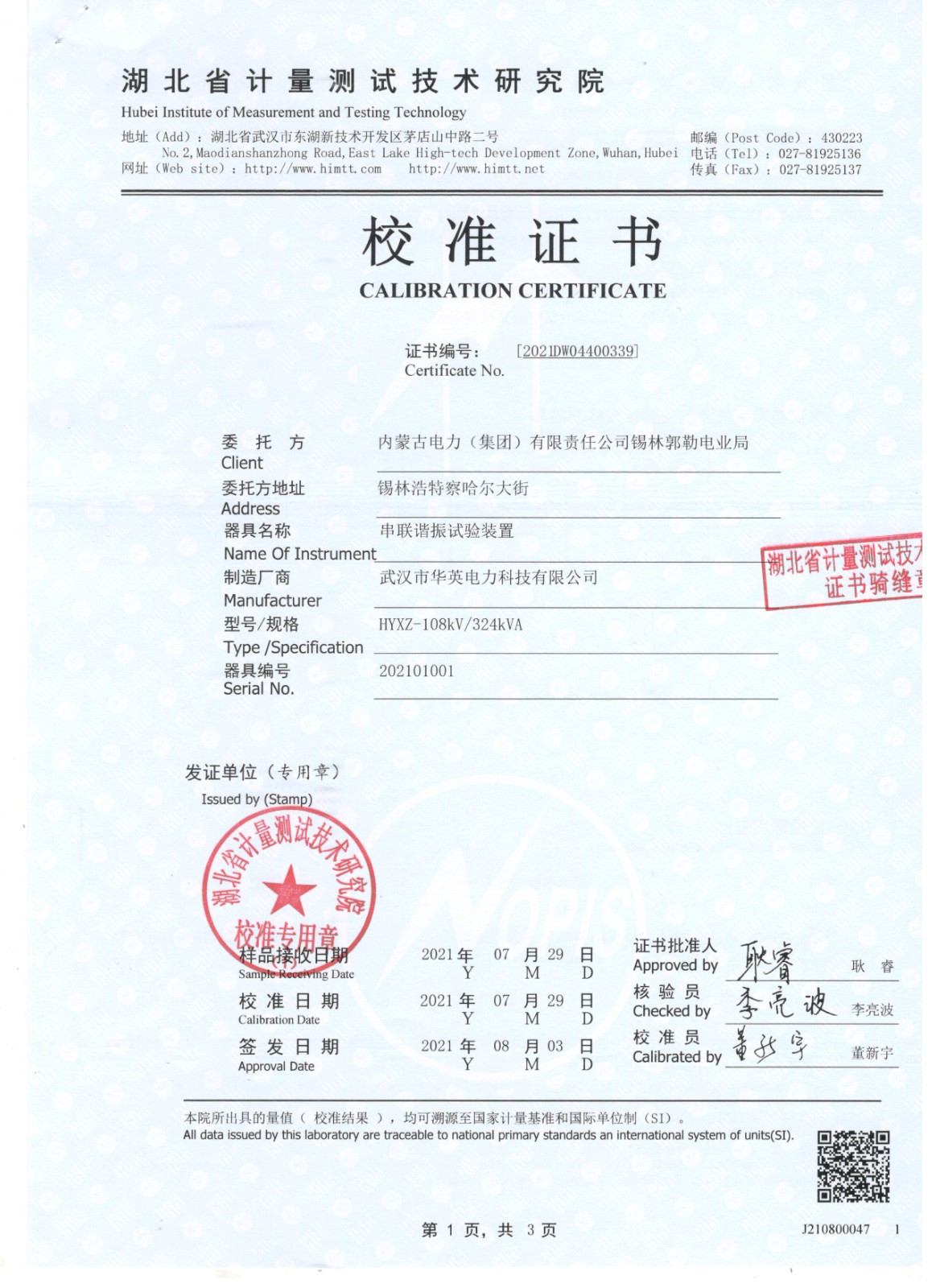

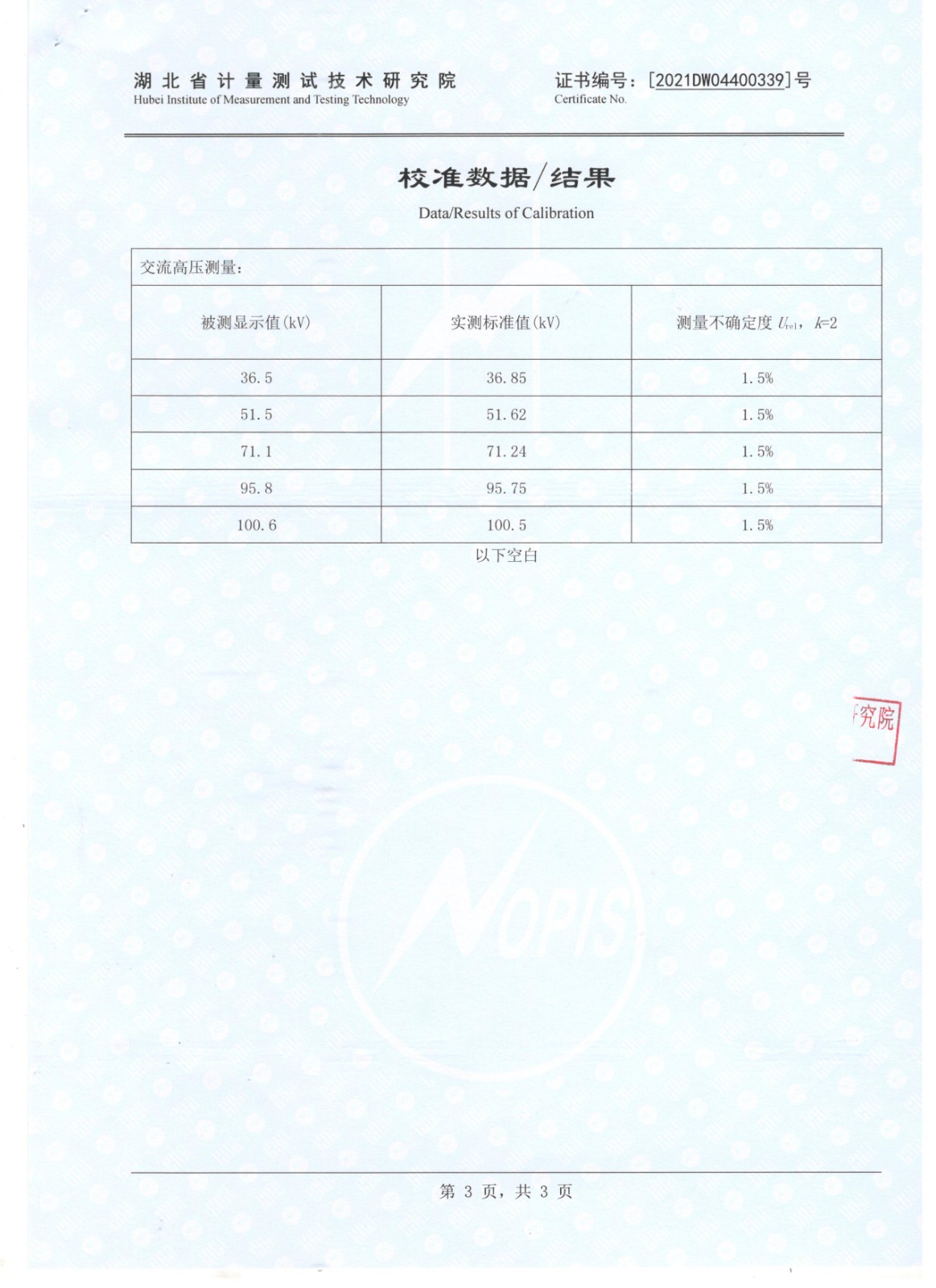

Calibration certificate of AC resonance test set HYXZ-108KV/324KVA issued by Hubei Institute of Measurement and Testing Technology

Service commitment
