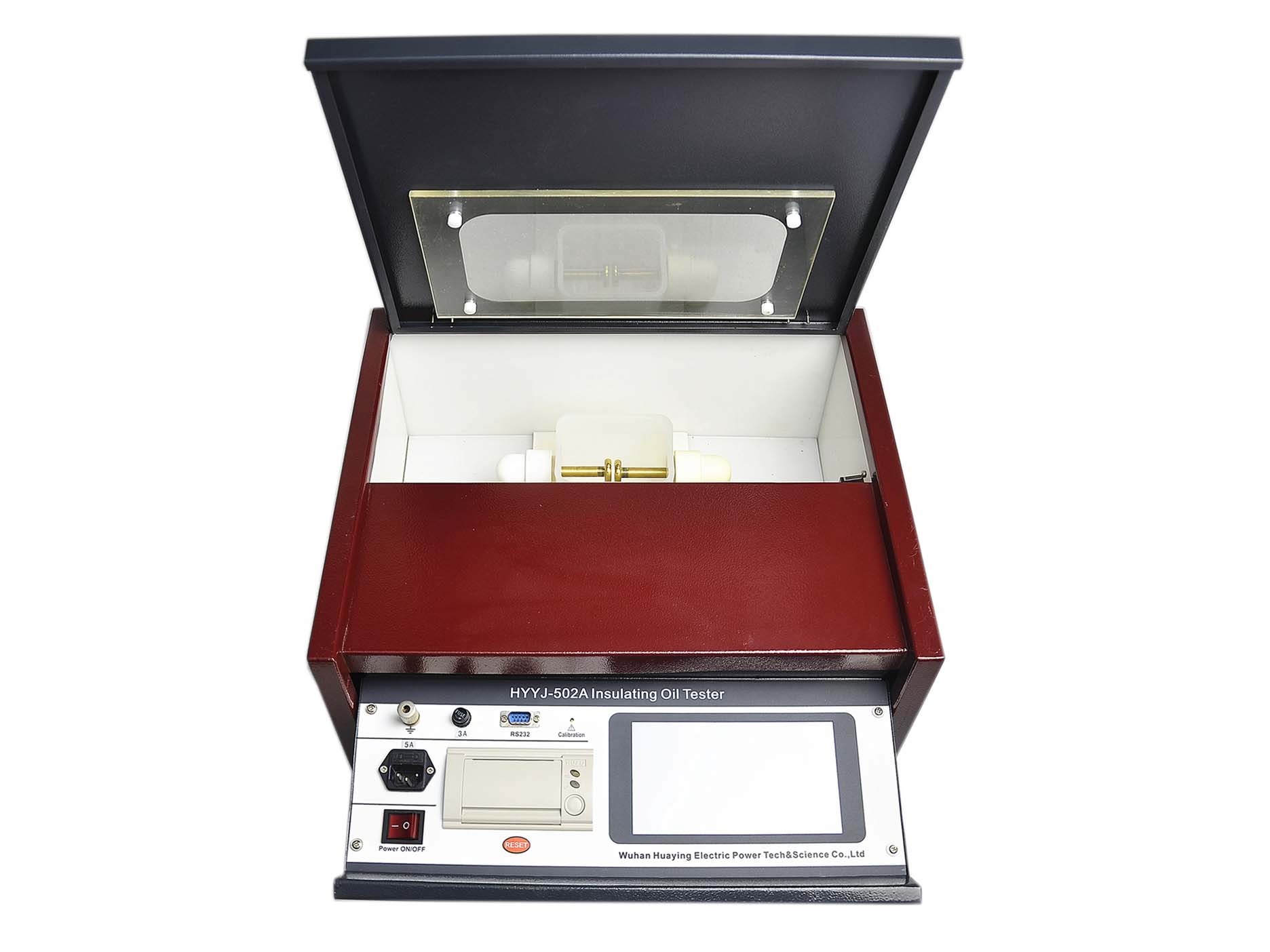

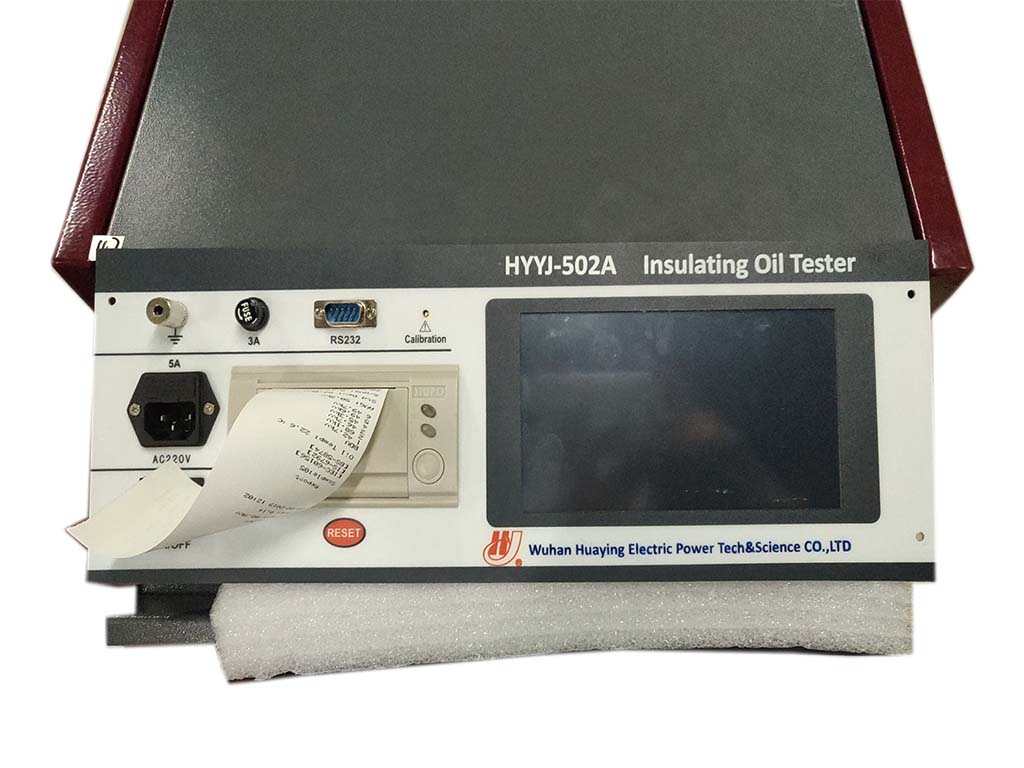

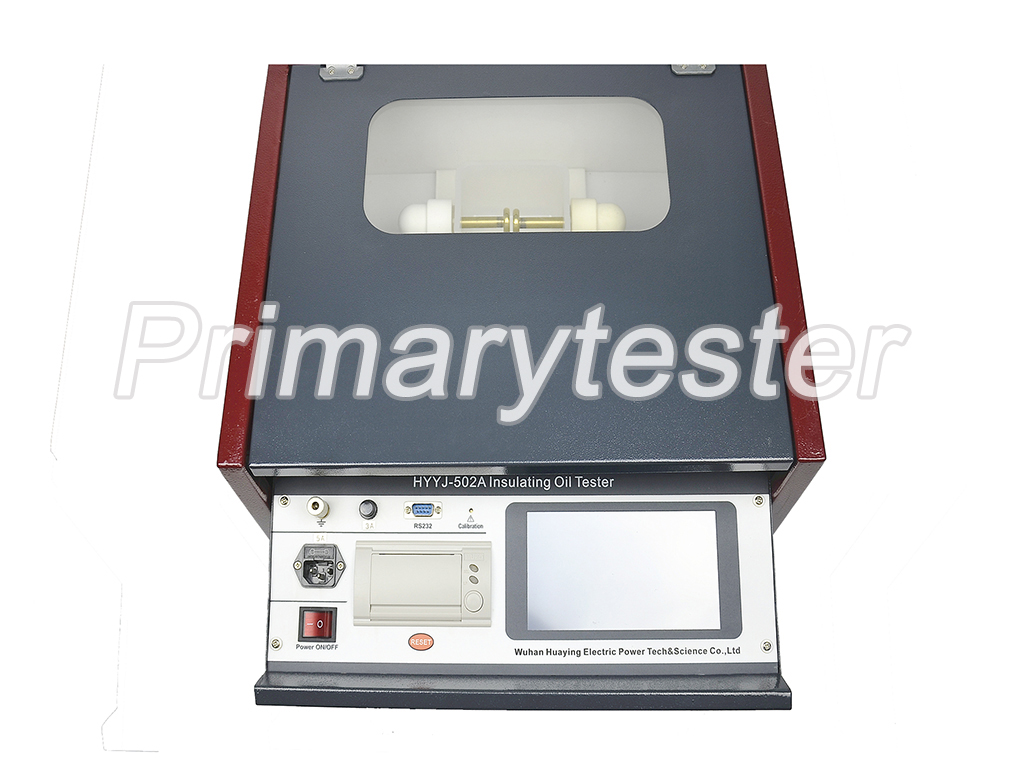

Insulating Oil Tester HYYJ-502A

HYYJ-502A insulating oil tester is developed according to DL/T846.7-2004 "Insulating oil dielectric tester" standard and the IEC/ASTM international standard. Built-in EEPROM memory can save 100 sets of test data, and test results can be printed at any time. It has the advantages of simple operation, powerful function, stable and reliable, and high degree of automation.

Features
Technical Specification


Power supply input

AC220V±10%

Output voltage

AC 0V~100KV

Rate of voltage rise

0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

Max test times

9

Init wait time

0~999s

Stir time

0~999s

Wait time

0~999s

Measurement accuracy

±(1% of full scale + 2 digits)    resolution:0.1KV

Temperature measurement

Measurement range

0℃ to 70℃, or better

Temperature resolution

1℃, or better

Operating temperature

up to 45℃

Storage

100 groups

7 inch colorful LCD with touch pad

Oil test vessel temperature measurement unit

Weight

38kg

Size

460 mm*380mm*360mm

Product Certificates

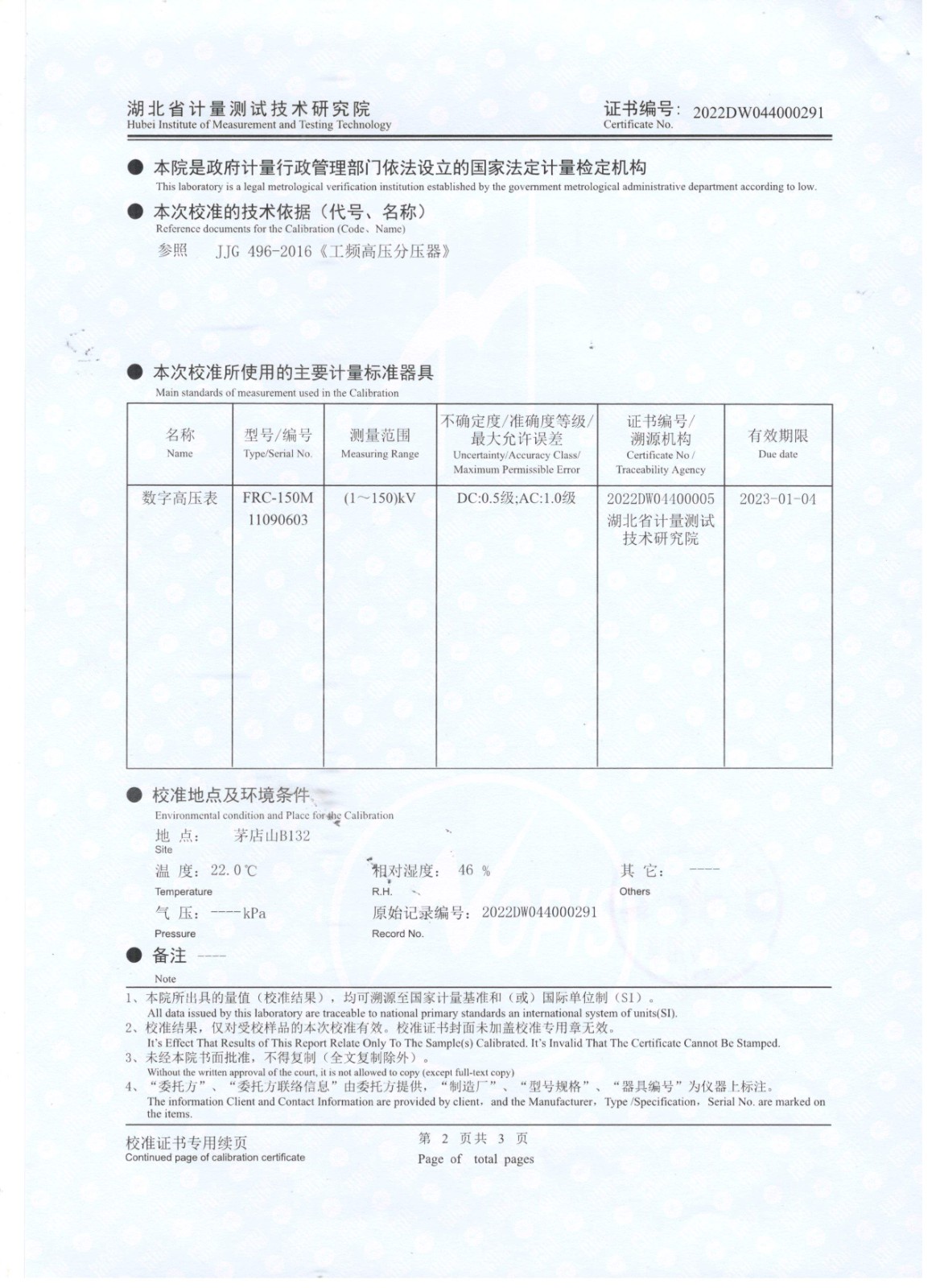

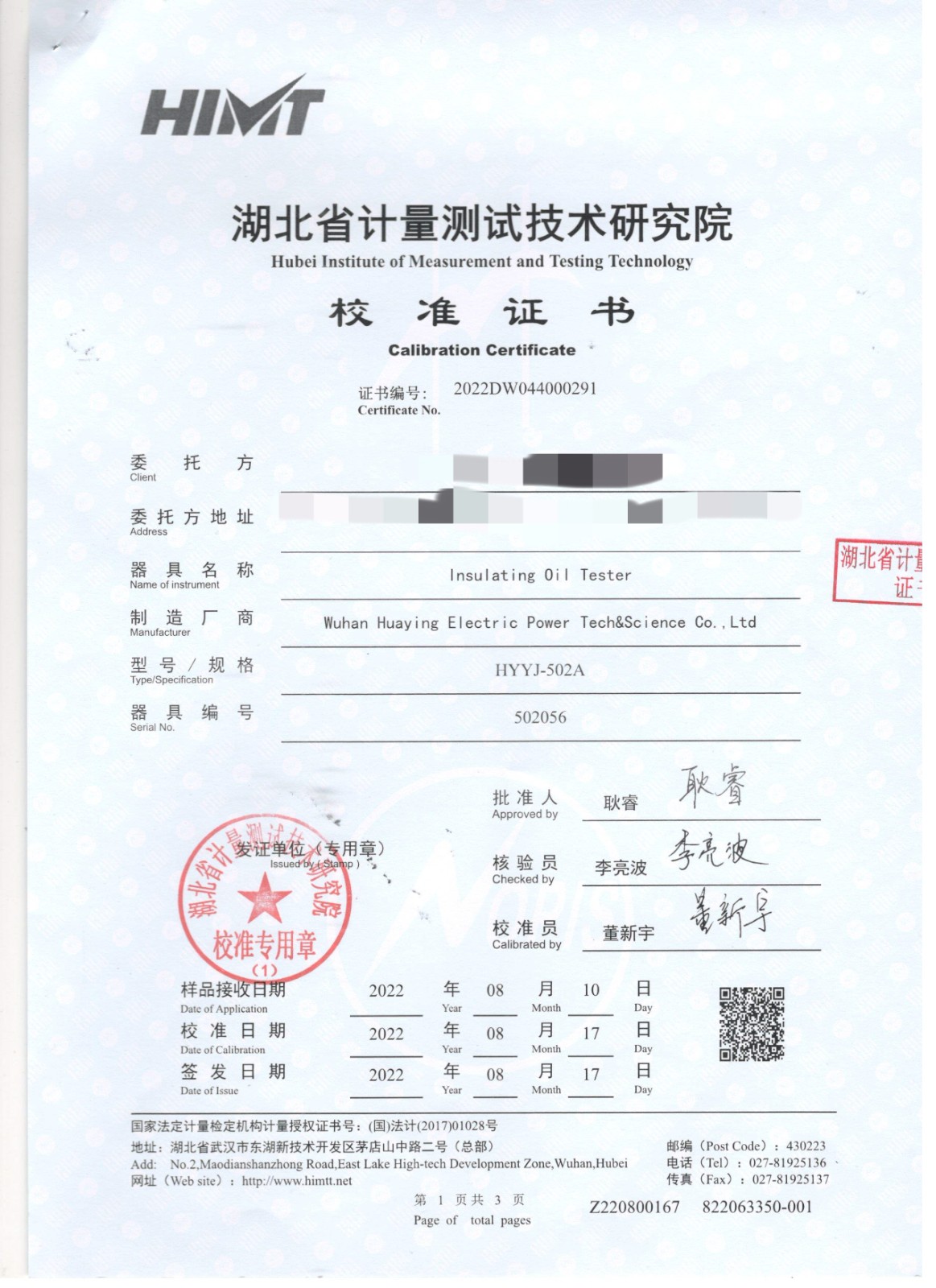

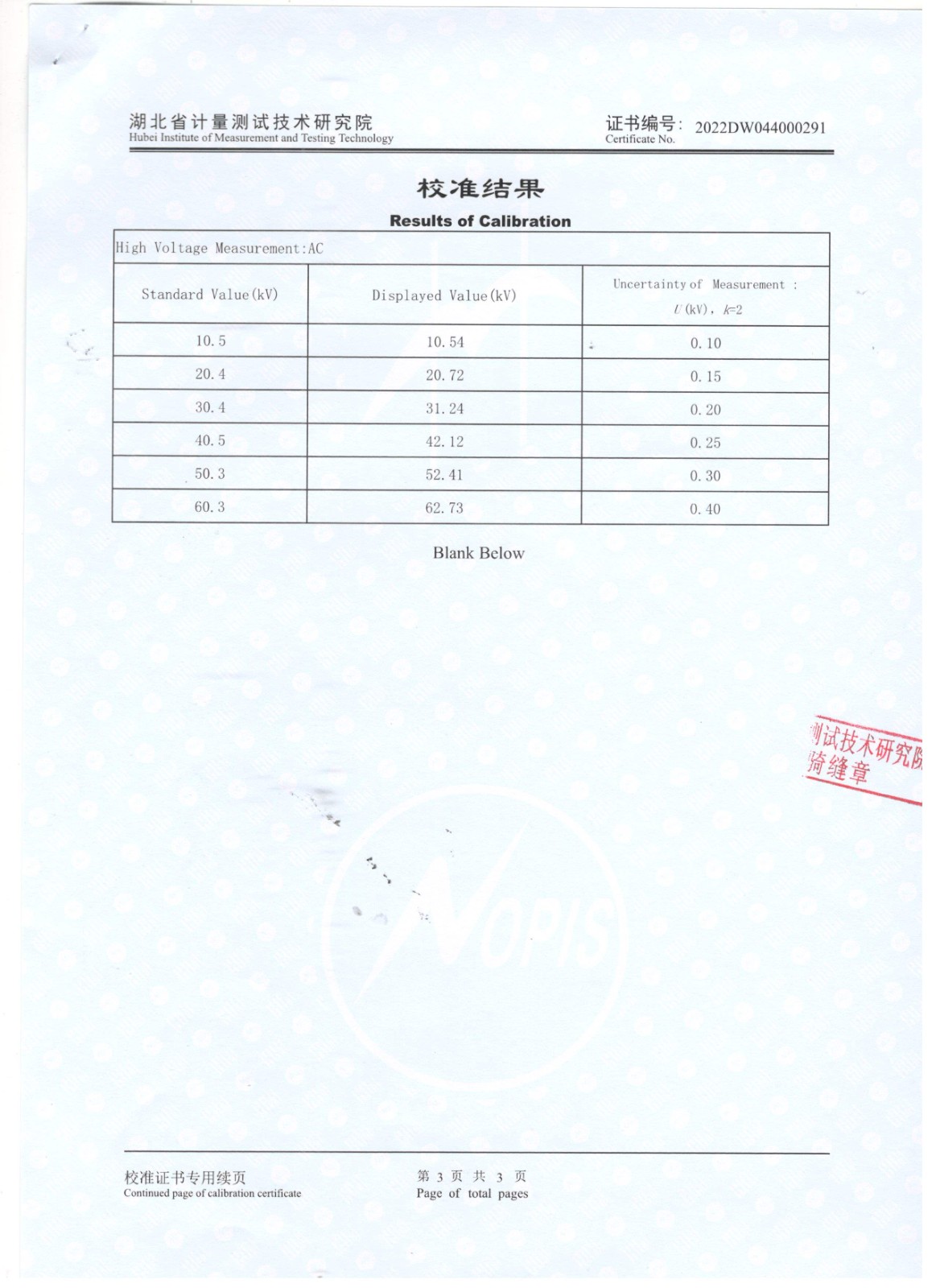

Calibration certificate of Insulating Oil Tester HYYJ-502A issued by Hubei Institute of Measurement and Testing Technology
