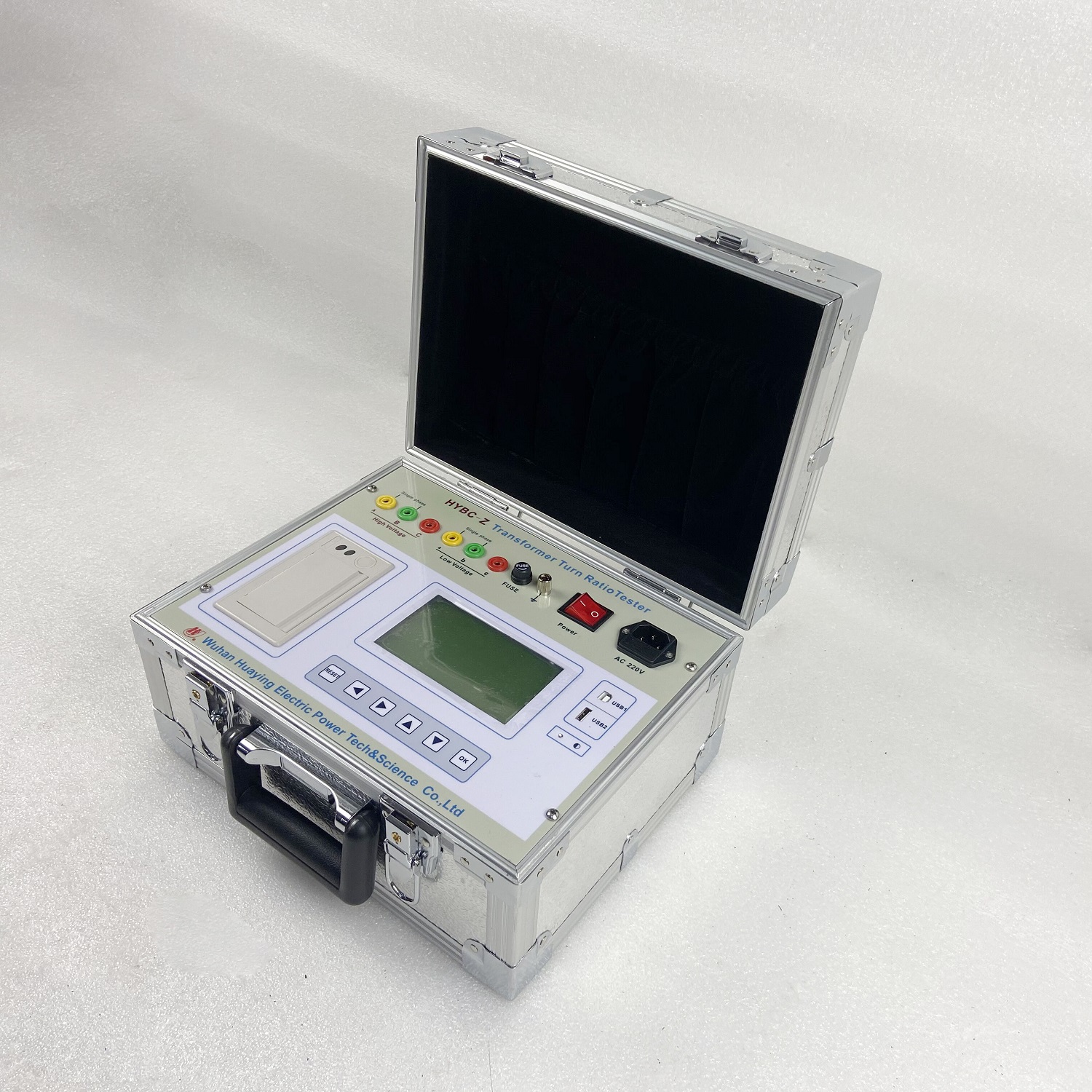

Transformer Turn Ratio Tester HYBC-Z
HYBC-Z Transformer Turn Ratio Tester is specially designed for three- phase transformer in power system, especially for transformer of type Z winding and other transformers whose zero-load current is relatively high.
Datasheet
Video
Contact UsThe tester has wide testing range, fast testing speed, favorable repeatability, flexible data processing, convenient connection, complete protection, easy learning and convenient operation.
1. Transformation ratio testing range: 0.8～10000
2. Group testing range: 1～12
3. Transformation ratio testing accuracy:
Class 0.2 (180V: 0.8～1000)
Class 0.5 (180V: 1000～10000)
Class 0.2 (10V: 0.8～200)
4. Transformation ratio resolution: 0.0001
5. Power input: 230V±10%, 50HZ±1Hz
6. Service temperature: -20℃~40℃
7. Relative humidity: ≤85%, no condensation
8. Overall size of host machine: 325mm×278mm×188 mm
9. Weight of host machine: 6.9kg

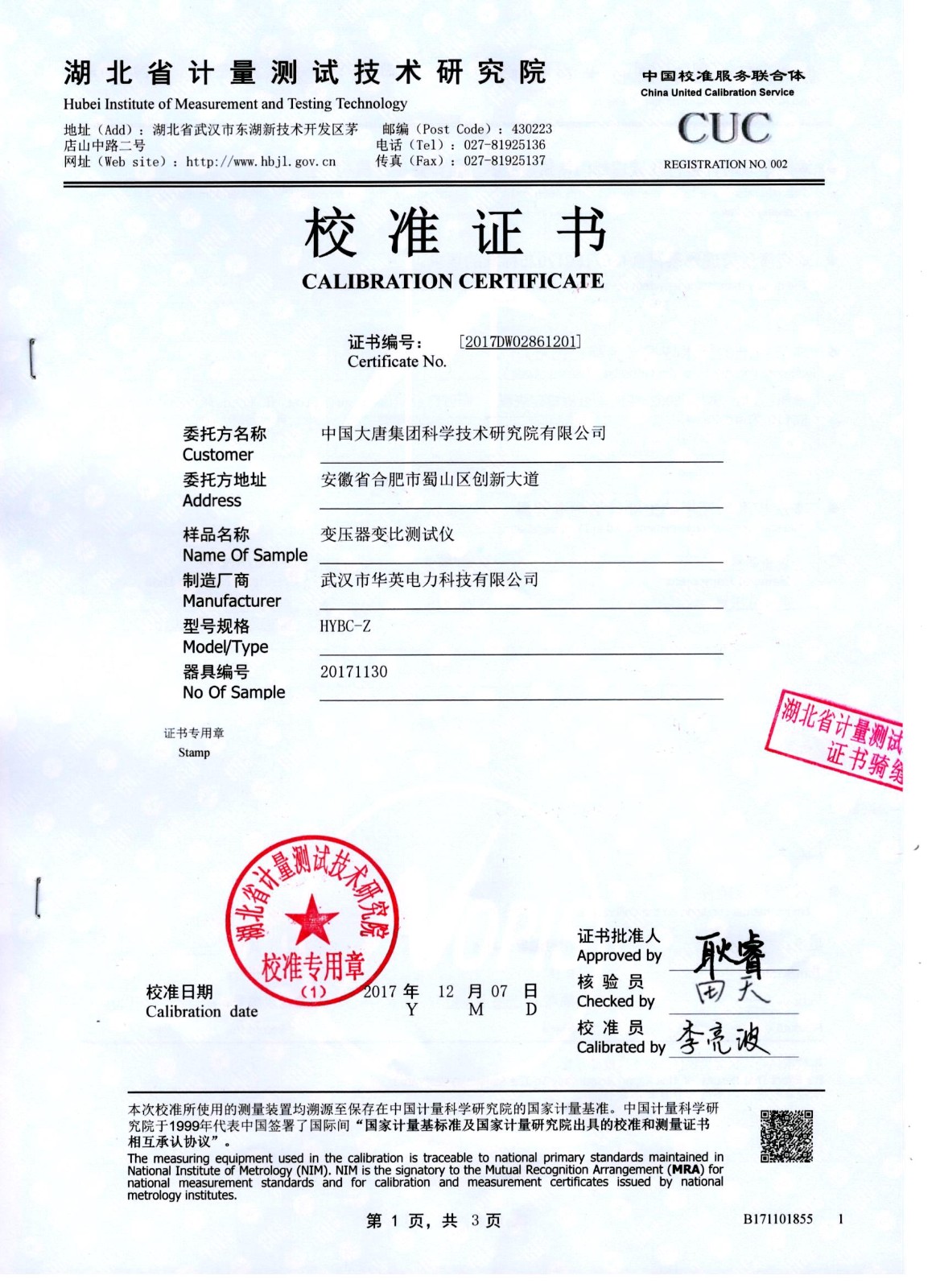

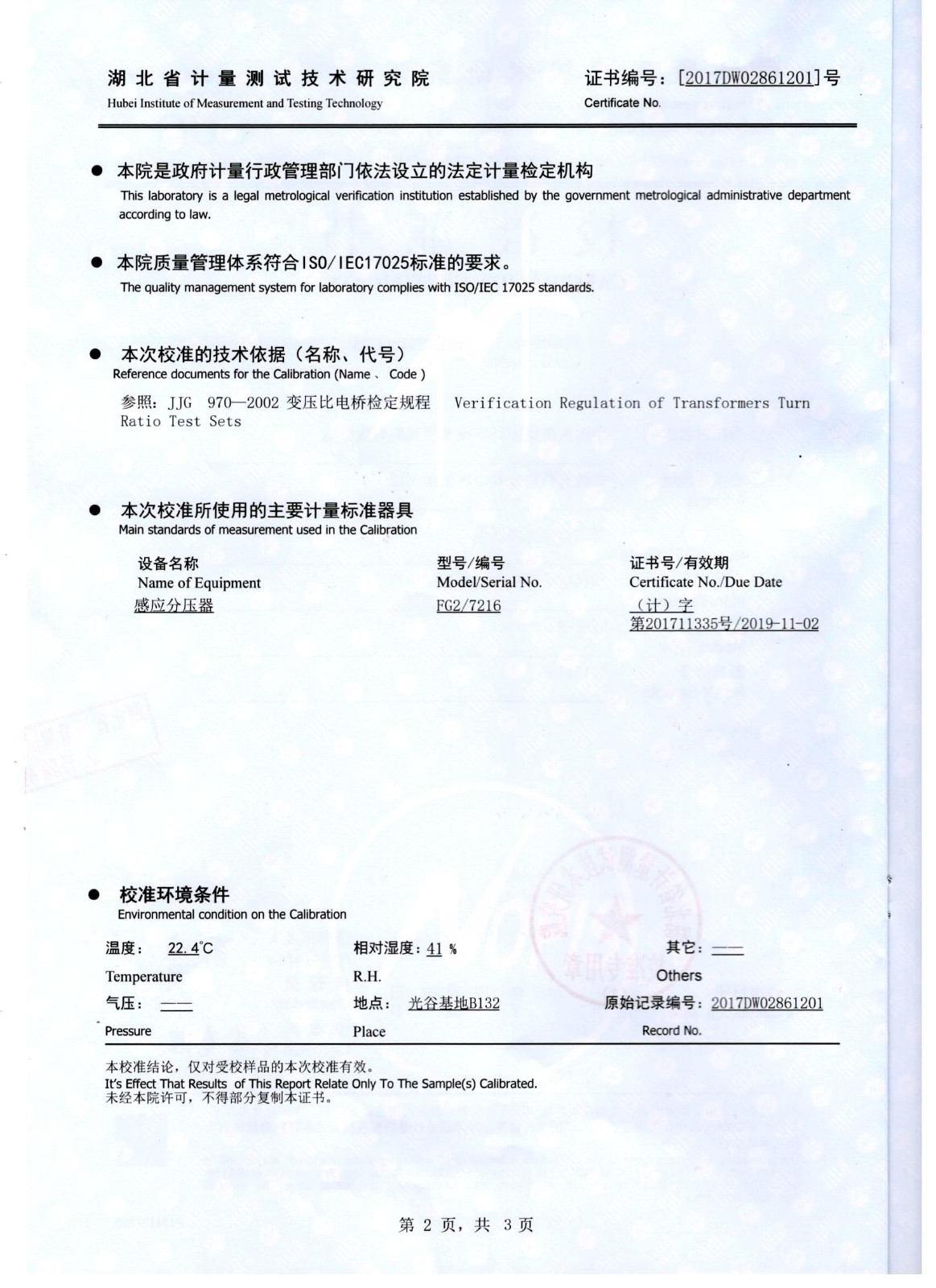

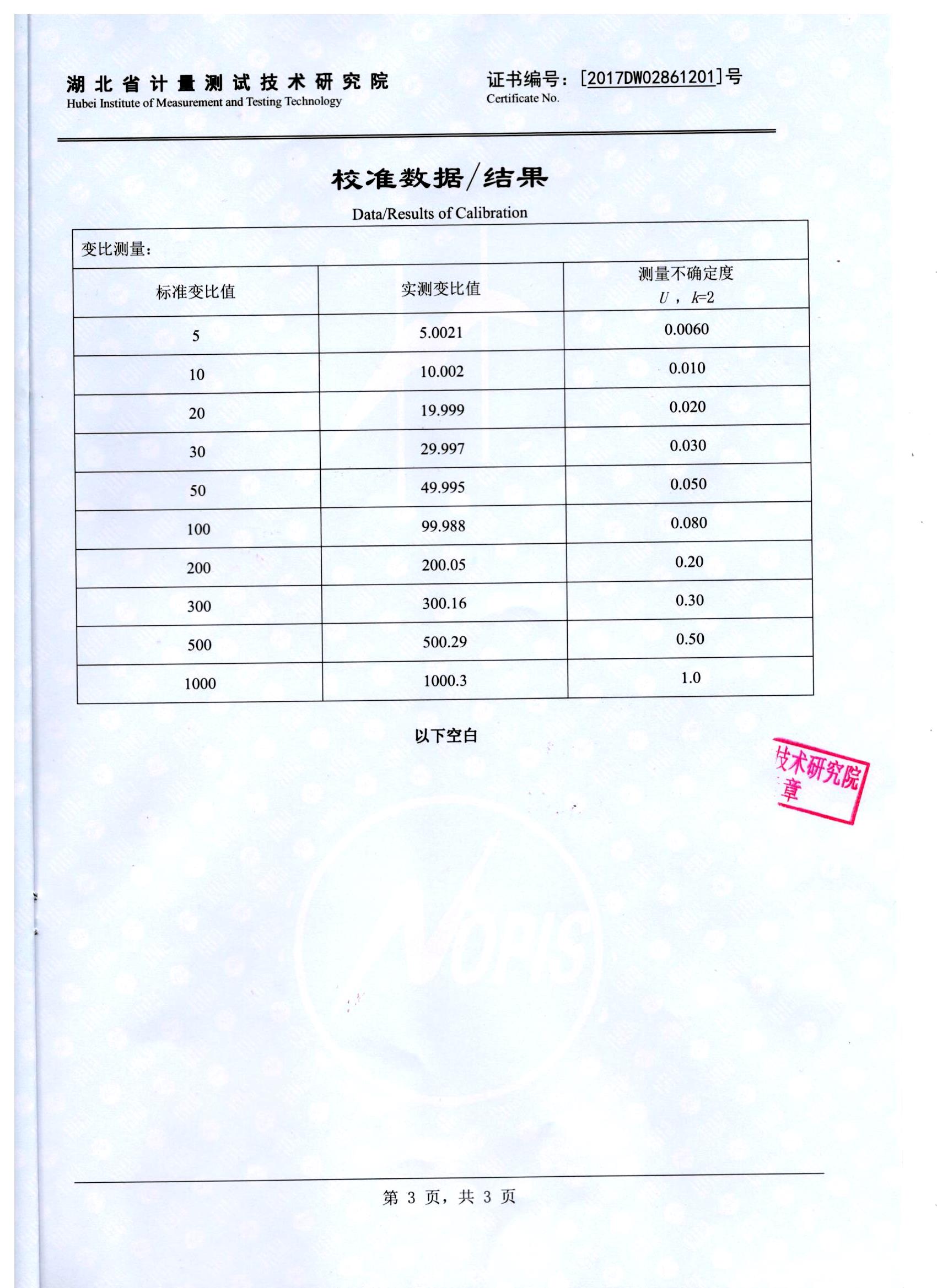

Calibration certificate of Transformer Turn Ratio Tester HYBC-Z issued by Hubei Institute of Measurement and Testing Technology
-
