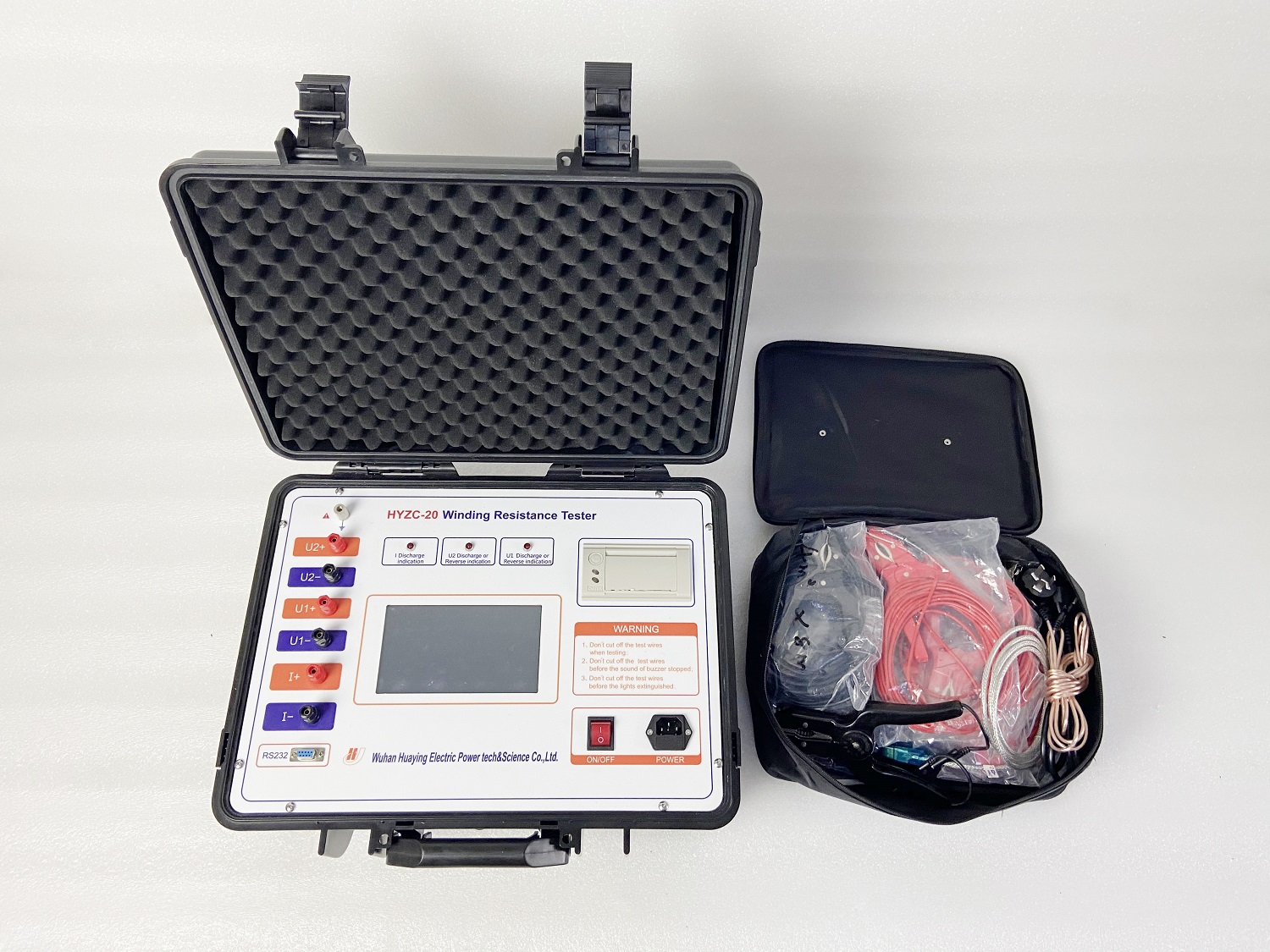

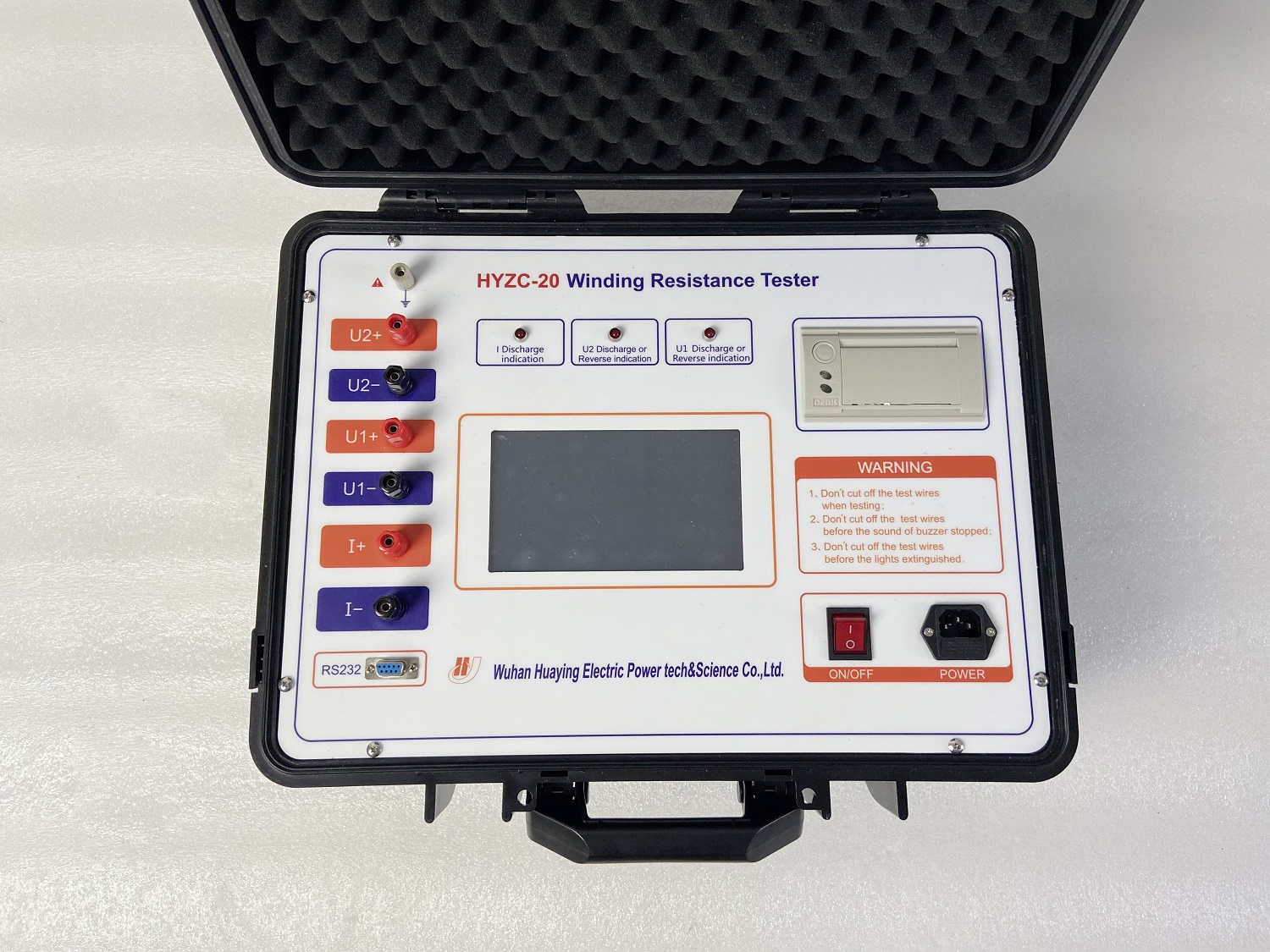

Double Channel Winding Resistance Tester HYZC-20
There are six DC currents to select for HYZCD-20. Using four or six wires, it is quick、stable、high precision for testing the winding resistance. In addition, it has strong anti-interference, over-current, over-voltage and discharge capabilities. The safety is also very high, and it is an ideal device for testing various resistances, especially sensitive instruments.
Datasheet
Video
Contact Us1. The tester has a large output power, and the power of the tester itself is very little.
2. Using a four-wire method, the tester is quick, stable, high precision for testing the winding resistance.
3. It has a strong ability for anti-jamming, over current, over voltage and discharge.
4. The security is also very high.
1. Resistance precision：±（0.2％RGD+2d） the least scale：0.1uΩ
2. Test range：1.000Ω -1000Ω (20mA)
100.0mΩ-100.0Ω (200mA)
10.00mΩ-10.00Ω (2A)
4.000mΩ-4.000Ω (5A)
2.000mΩ-2.000Ω (10A)
1.000mΩ-1.000Ω (20A)
3. Output current precision：±5％
4. Two hundred groups of data can be stored
5. With thermal printer to print the test data
6. Weight：10KG
7. Power supply：AC220V±10%，(50±1)HZ
8. Operation condition：-10～50℃ Humidity <90％ No condensation。

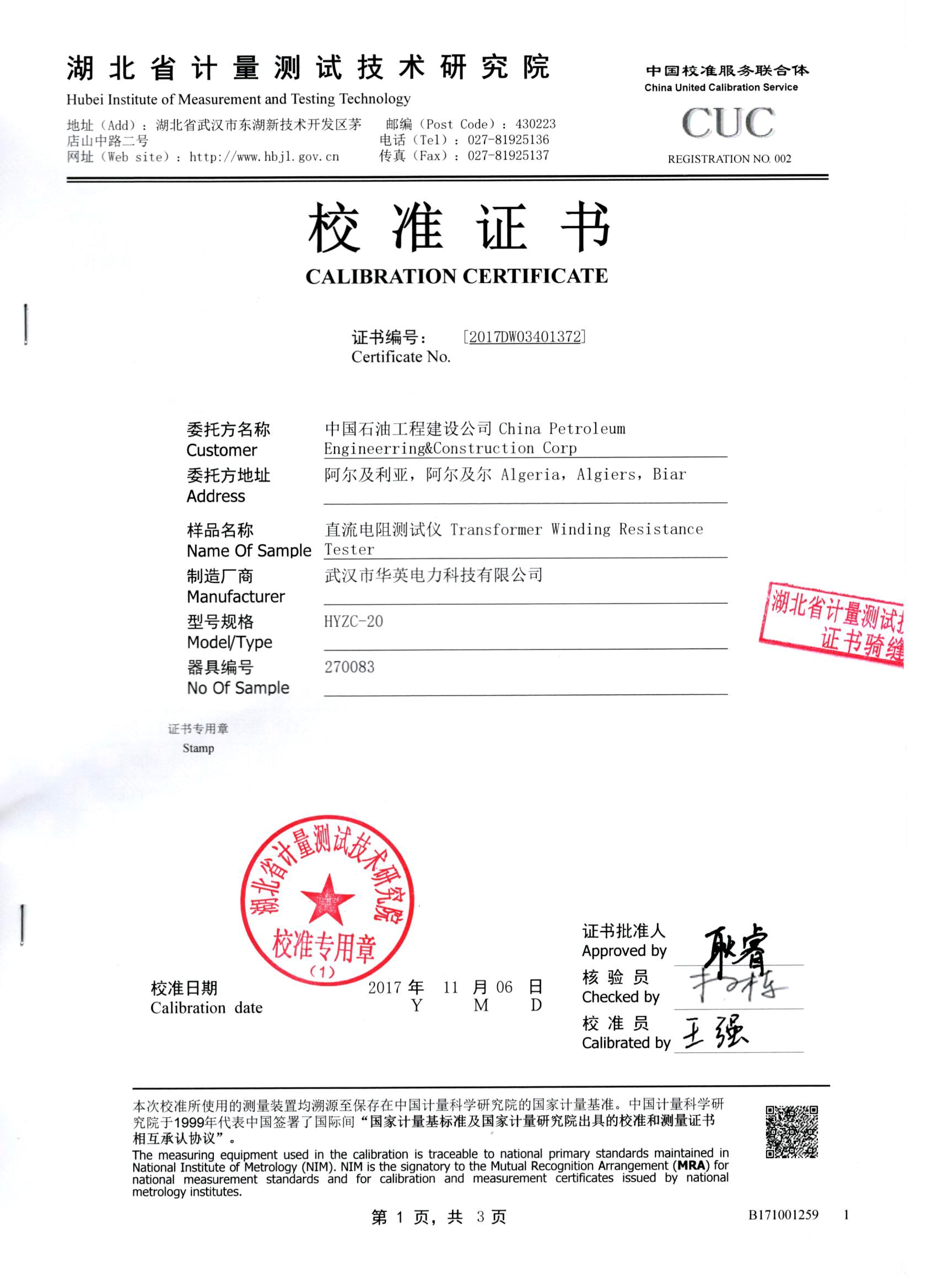

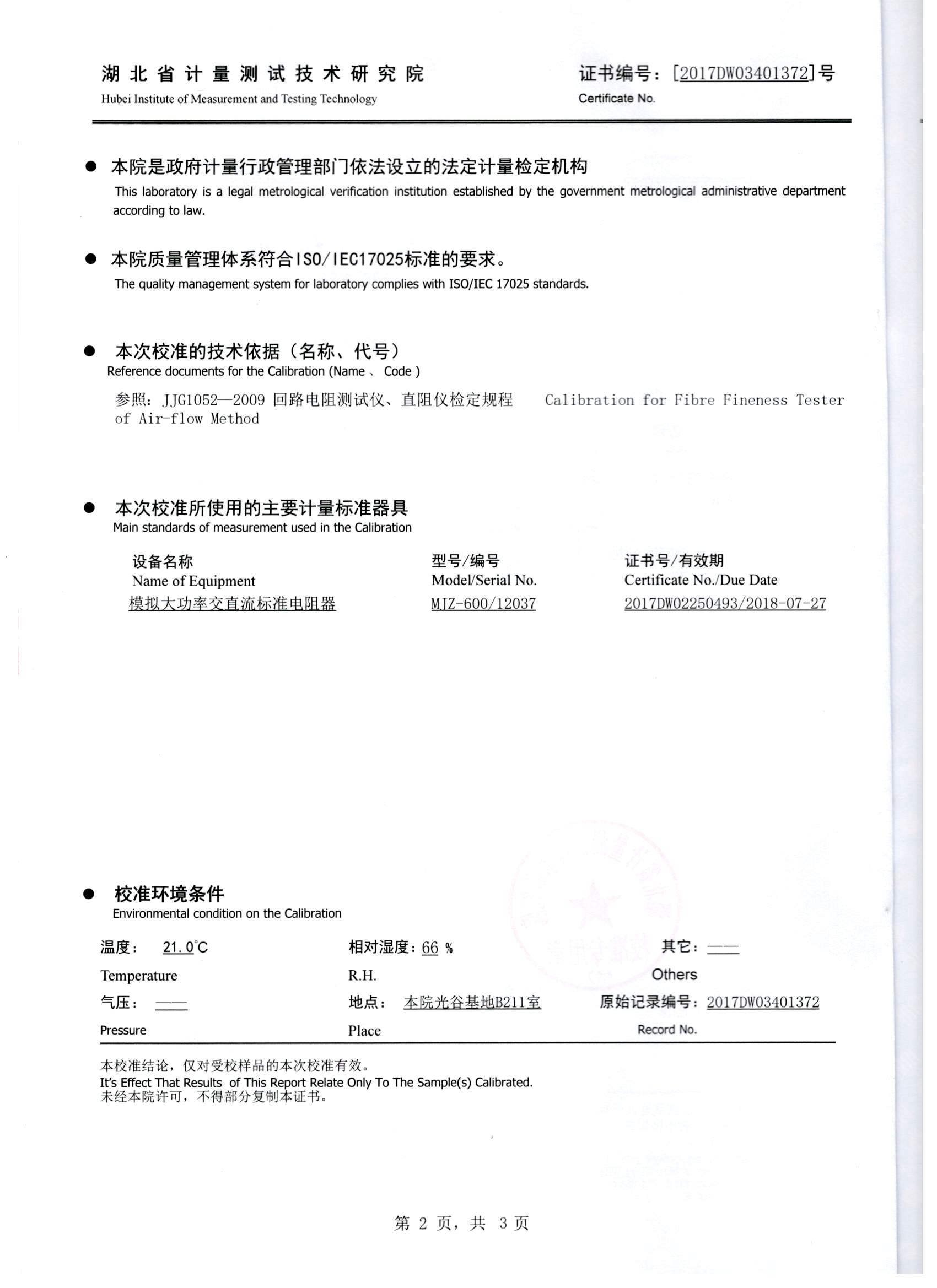

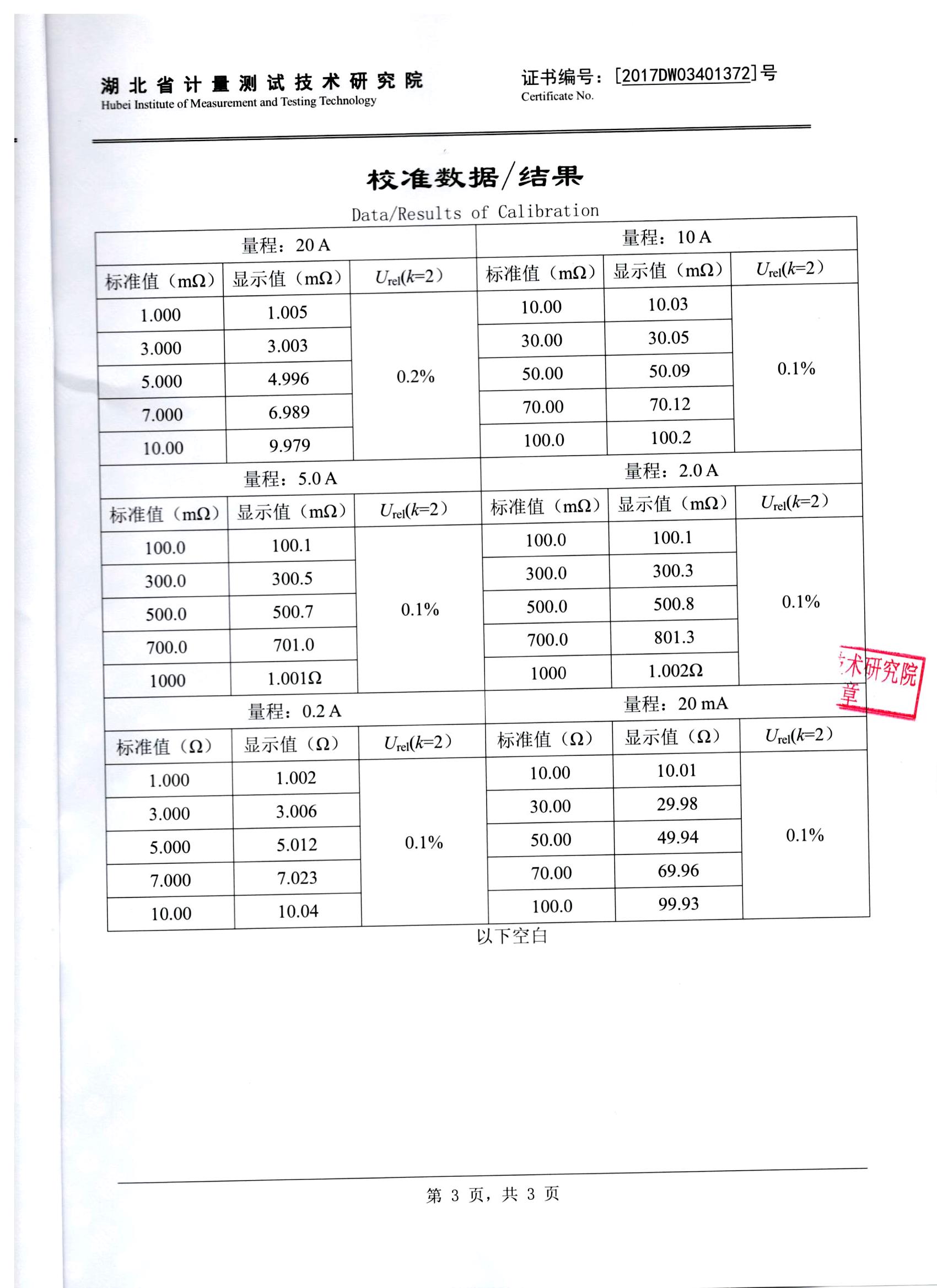

Calibration certificate of Double Channel Winding Resistance Tester HYZC-20 issued by Hubei Institute of Measurement and Testing Technology
-
