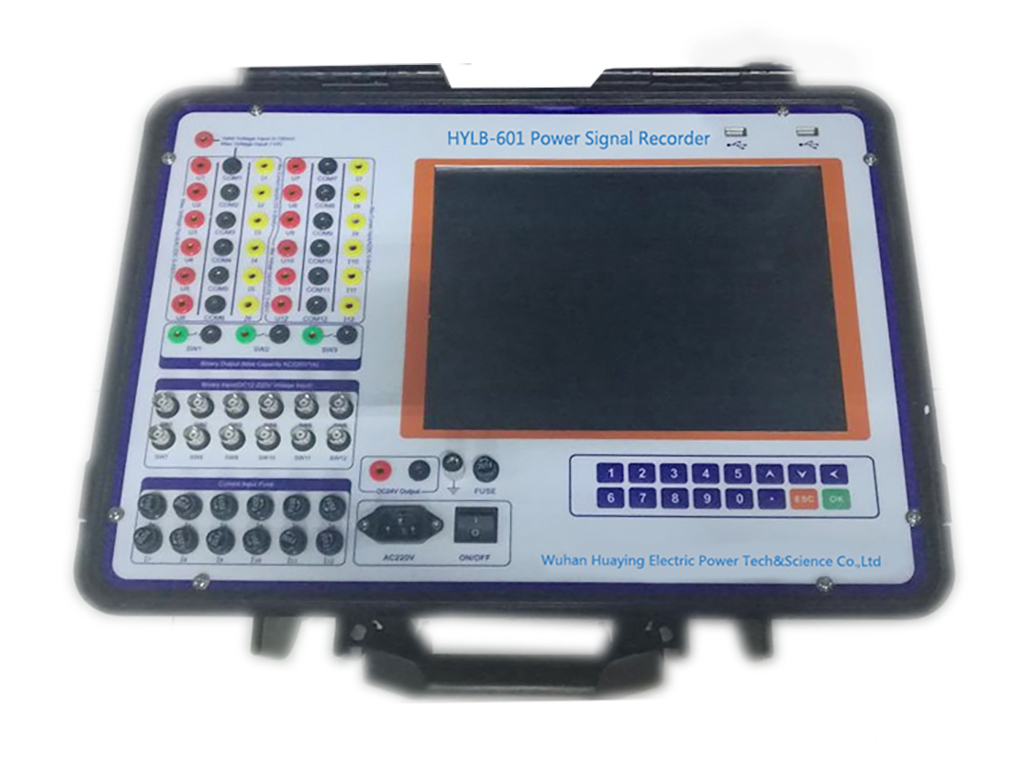

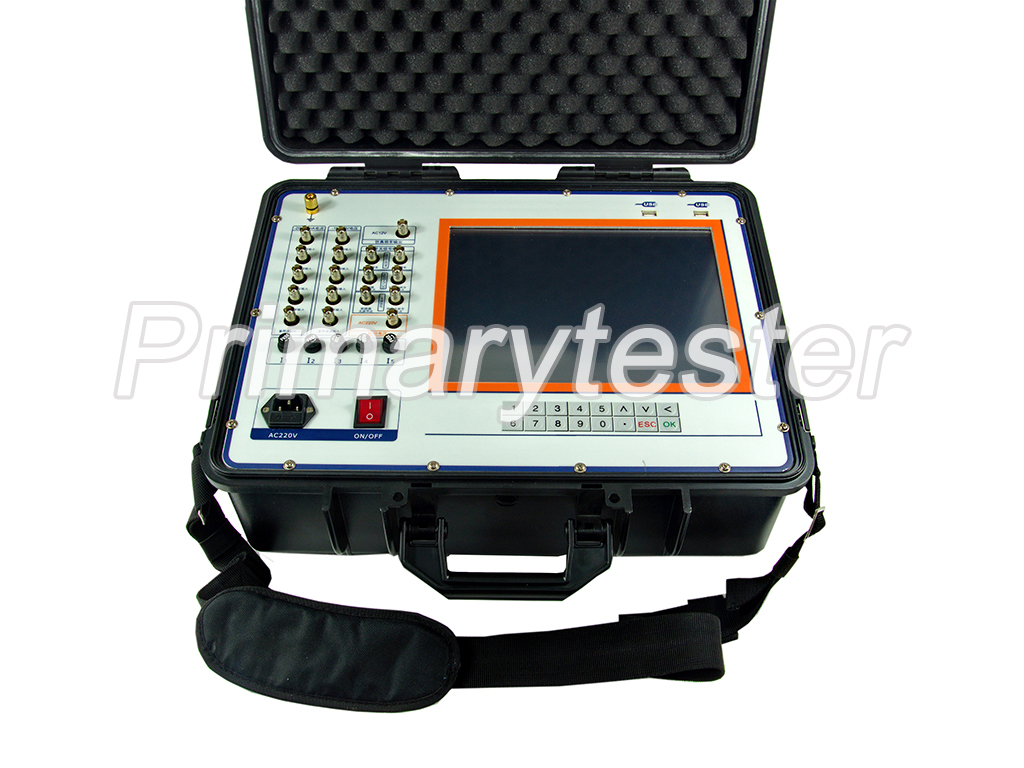

Power Signal Recorder HYLB-601

HYLB-601 is an instantaneous signal recorder applied in industry signal analysis. It takes IPC as the core for data sample and process. Special design makes the reorder has a good performance in anti-jamming and easy operation.

Features
Technical Specification

1. Analog signal sample channels:12

2. Optional ranges: -450V~450V,-100V~100V,~10V~10V,-20mA~20mA , -100mV~100mV (only 1 channel)

Sample error
-450V~450Verror<0.5V
-100V~100Verror <0.2V
-10V~10Verror <0.01V
-20mA~20mAerror <0.02mA
-100mV~100mVerror<0.5mV
Binary signal input interface12
Binary signal voltage rangesDC 12~220V
Work condition
Power supplyAC220V±10 %
Power frequency50Hz/60Hz
Power consumption≤60w
Temperature-10~50℃
Humidity≤85%RH
Size448mm*260mm*150 mm
Weight<10kg


Product Certificates

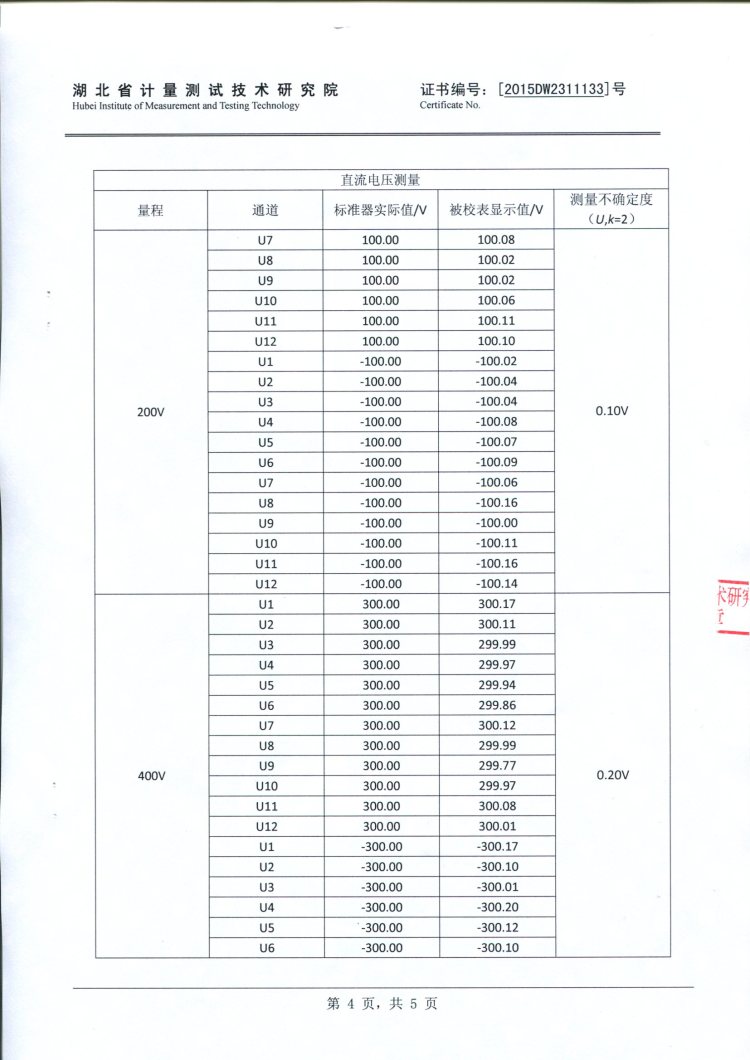

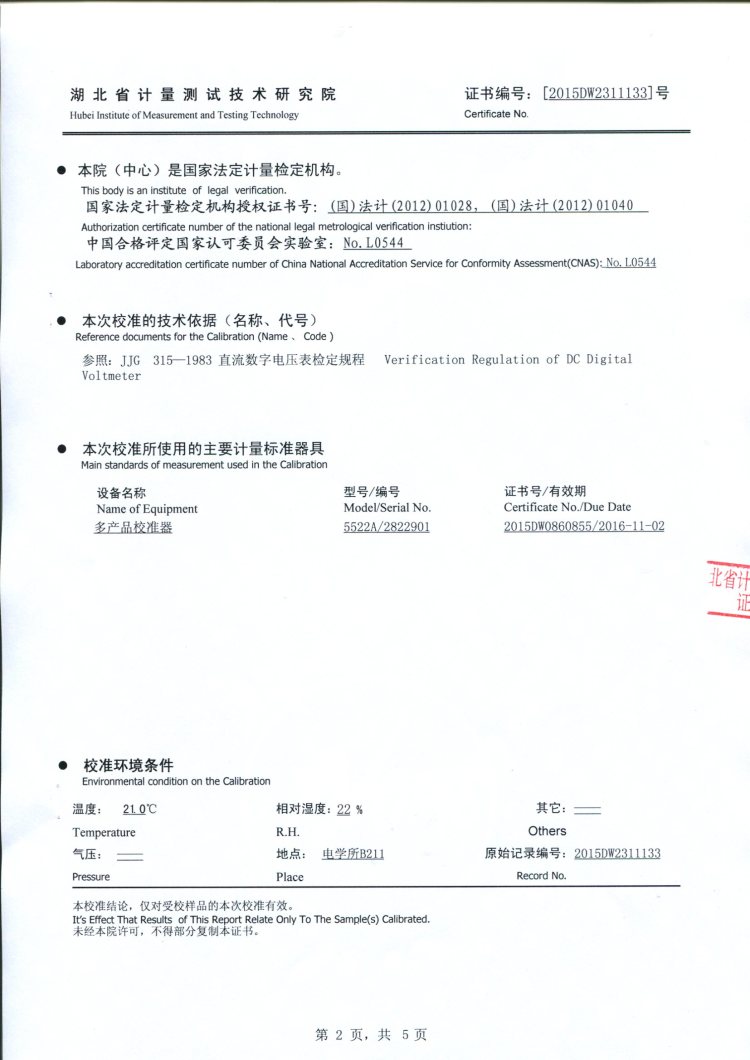

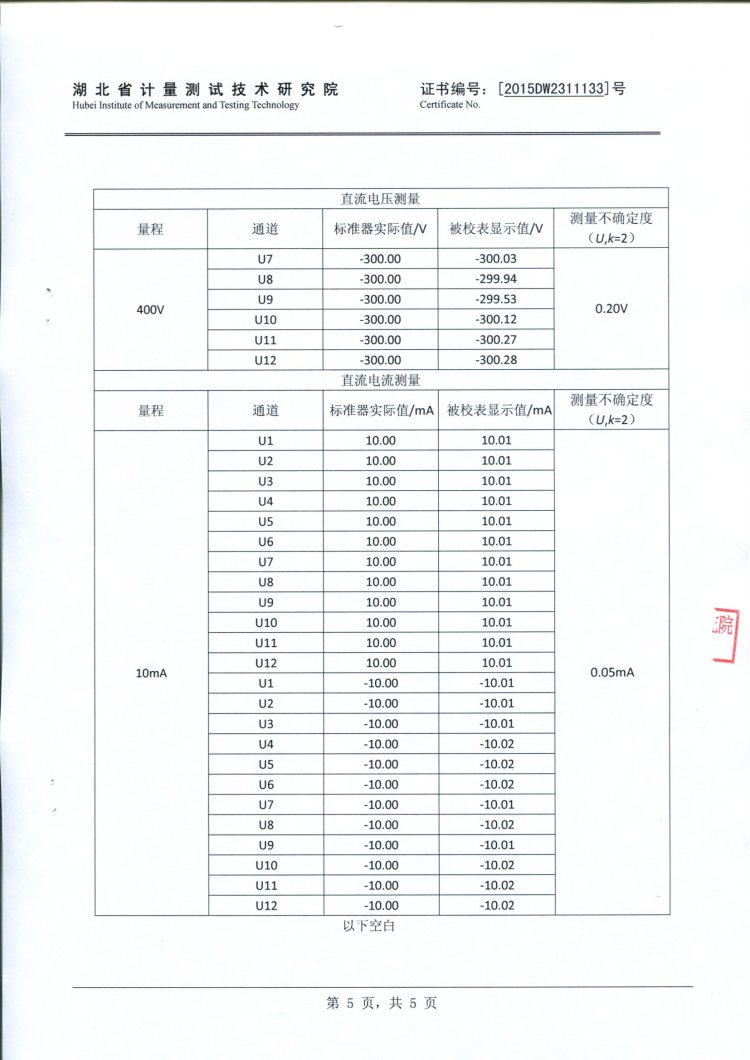

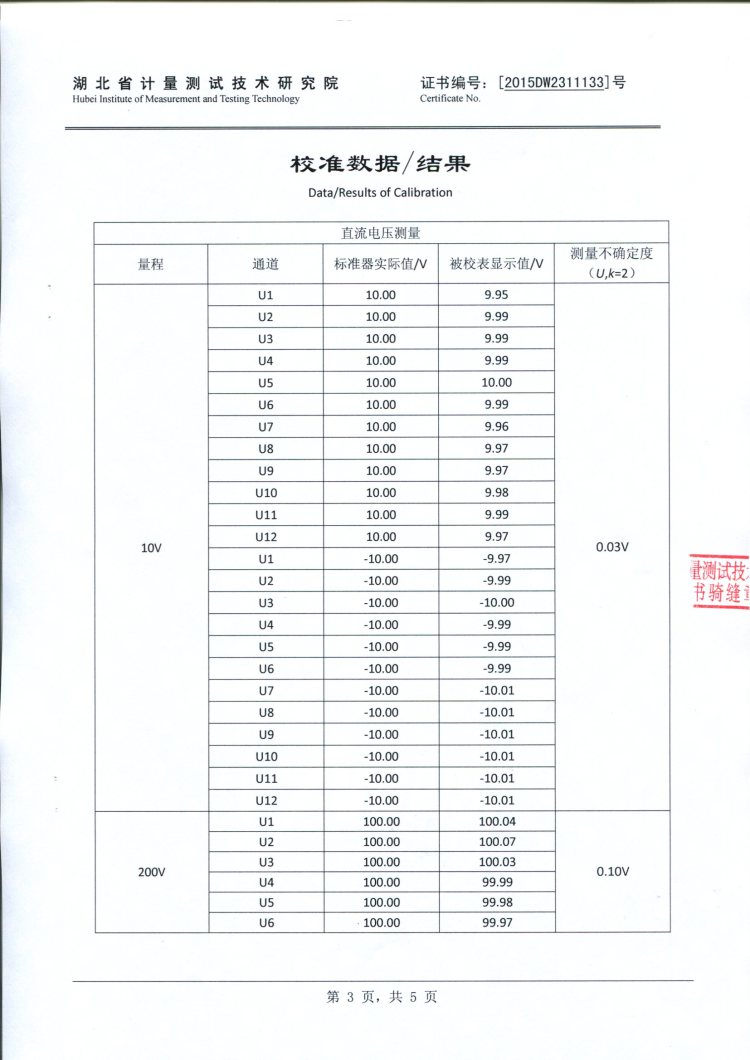

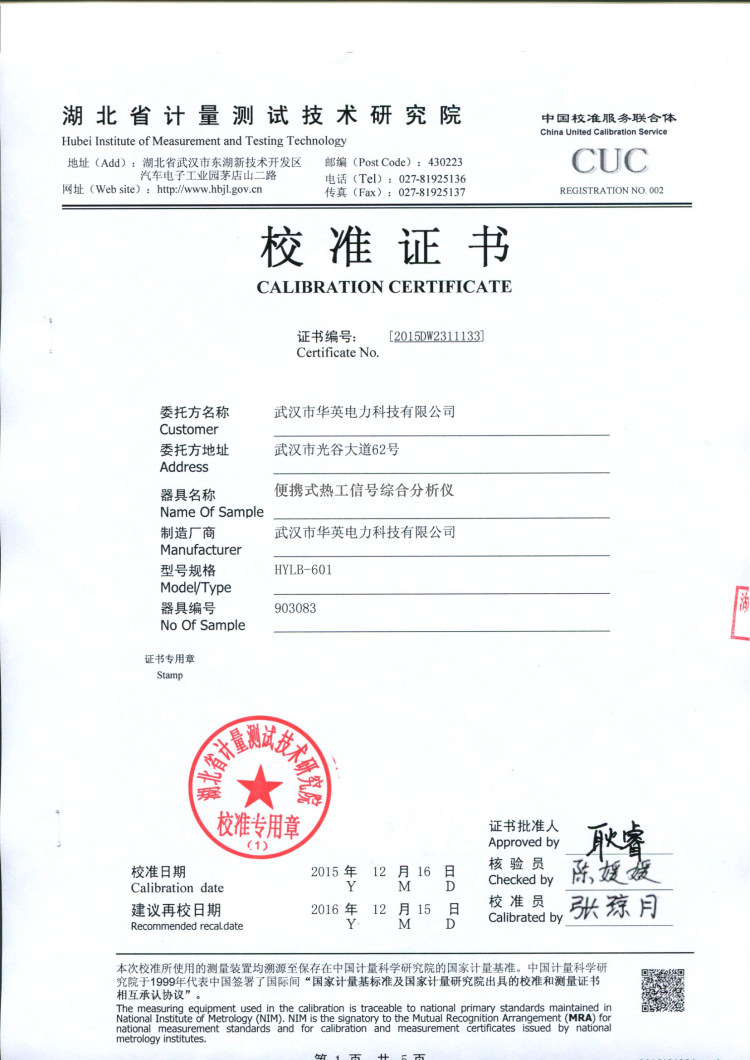

Calibration certificate of Power Signal Recorder HYLB-601 issued by Hubei Institute of Measurement and Testing Technology
