Home > Products > Insulation Resistance Tester HY3035

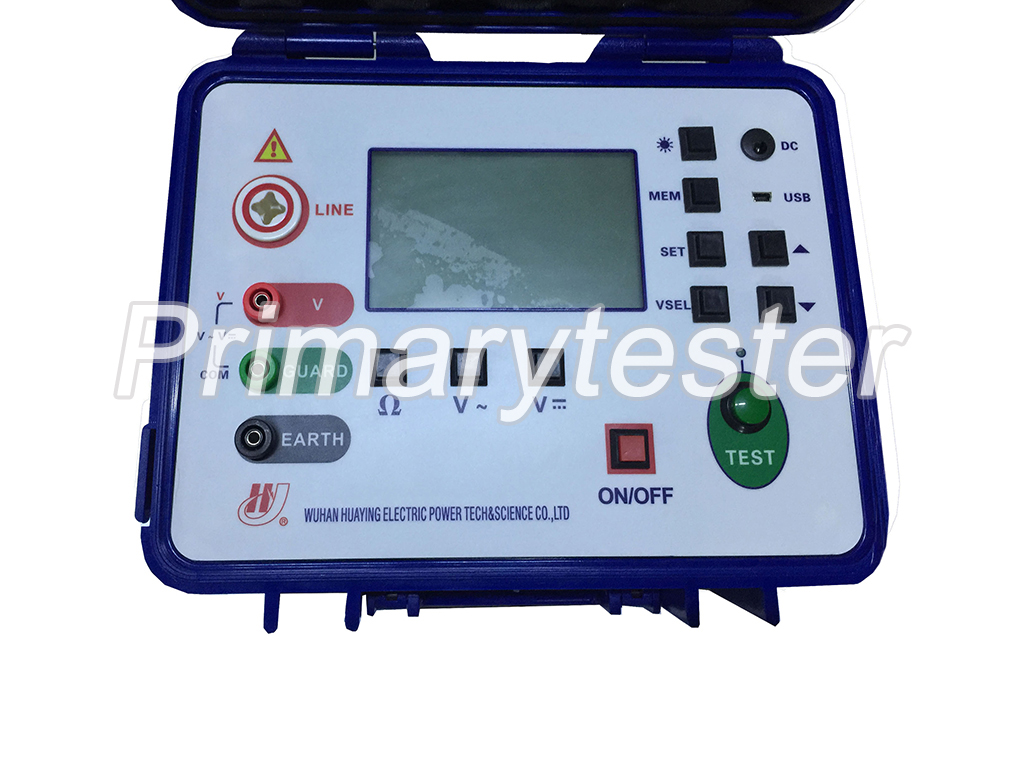

Insulation Resistance Tester HY3035

The insulation resistance meter HY3035 is suitable for measuring the insulation resistance of various insulating materials and the insulation resistance of transformer, motor, cable and electrical equipment. It has many advantages such as reliable, stable performance, strong anti-interference ability and so on.

Features
Technical Specification

Rated voltage (V)

100;250;500;1000;2500;5000V

Measurement voltage (V)

The rated voltage×(1±10%)

Insulation resistance range Ω (G)

0.01MΩ~1000GΩ

Insulation resistance resolution

0.01MΩ

Dc voltage range

0~1000V

Dc voltage resolution

0.1V

Ac voltage range

0~750V

Ac voltage resolution

0.1V

Output short circuit current

≥5mA(5KV)

The power supply

12V rechargeable battery

Backlight

Controllable gray screen backlight, suitable for dark
places

Size of instrument

240mm ×188mm ×85mm

Power consumption

Standby: 30mA Max (backlight closing)

Turn on the acklight: 42mA Max

Measurement: 300mA Max (backlight closing)

Instrument quality

2720g

The battery voltage

Low battery voltage, display low electrical symbol “2.jpg

Automatic shutdown

The instrument is not operated for 15 minutes

Insulation resistance

≥50MΩ(measuring line and enclosure)

Pressure

AC3kV/50Hz

Working temperature and humidity

-10℃~+50℃<85%RH

Storage temperature and humidity

-15℃~+55℃<90%RH






Product Certificates

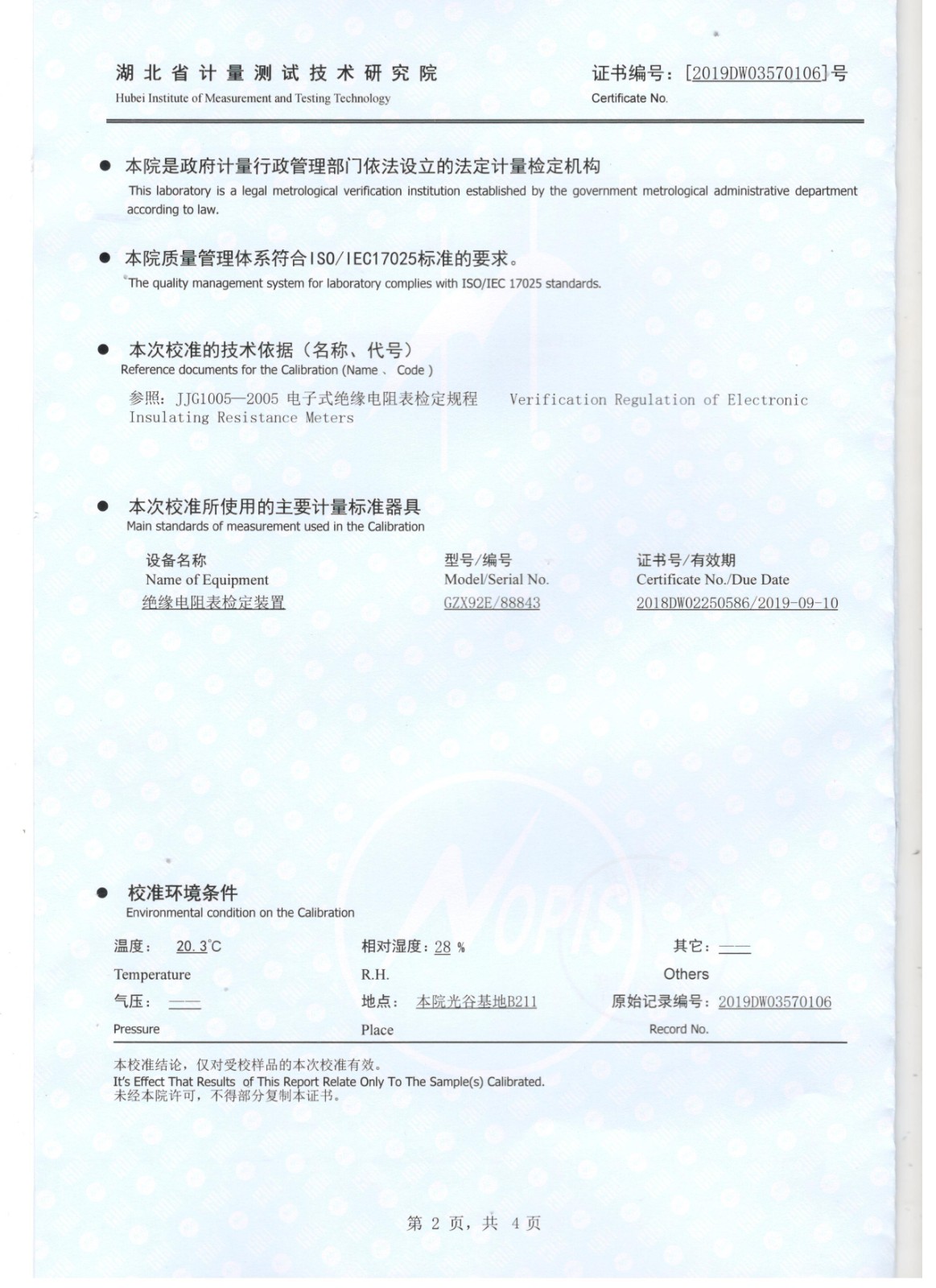

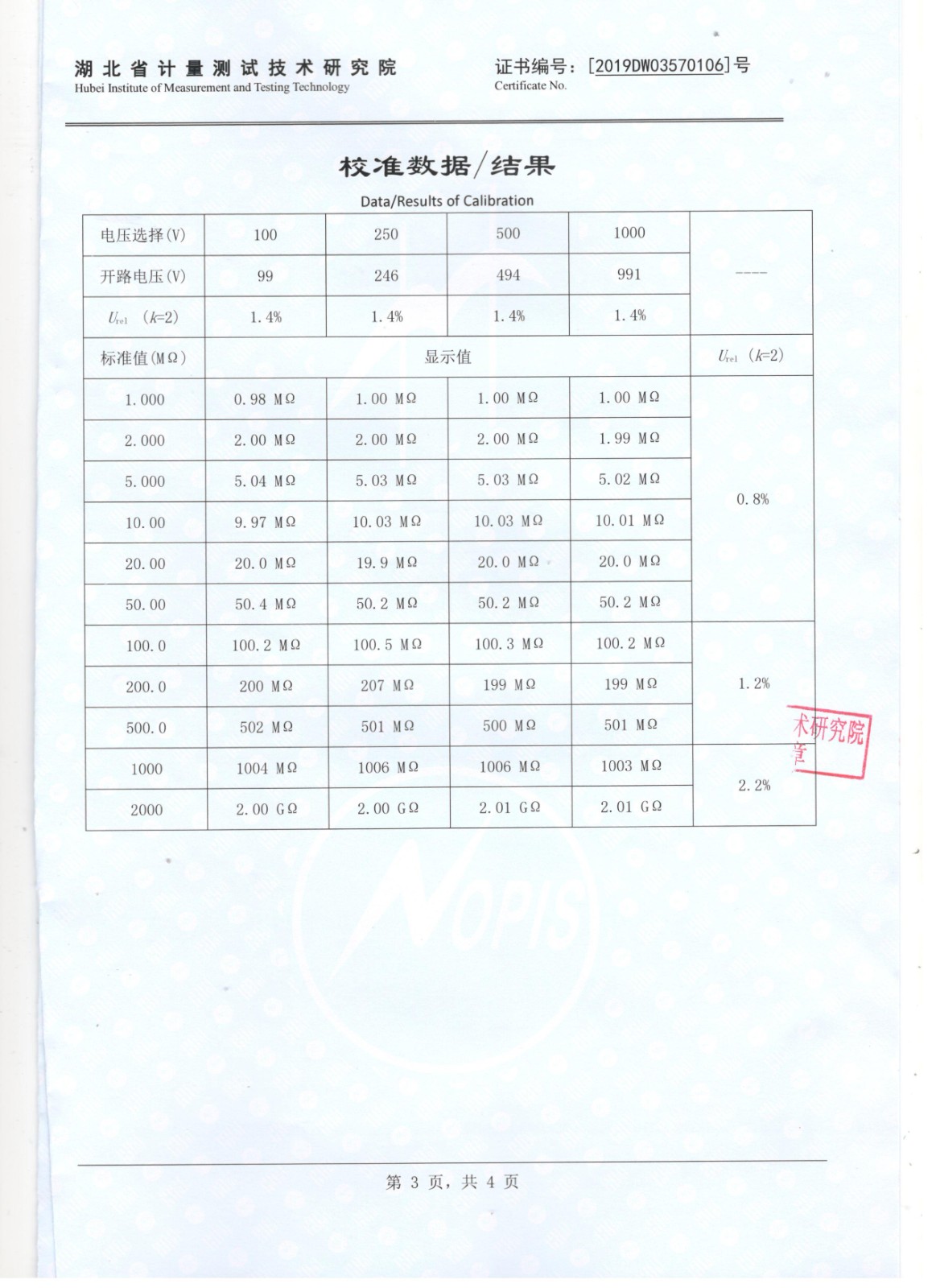

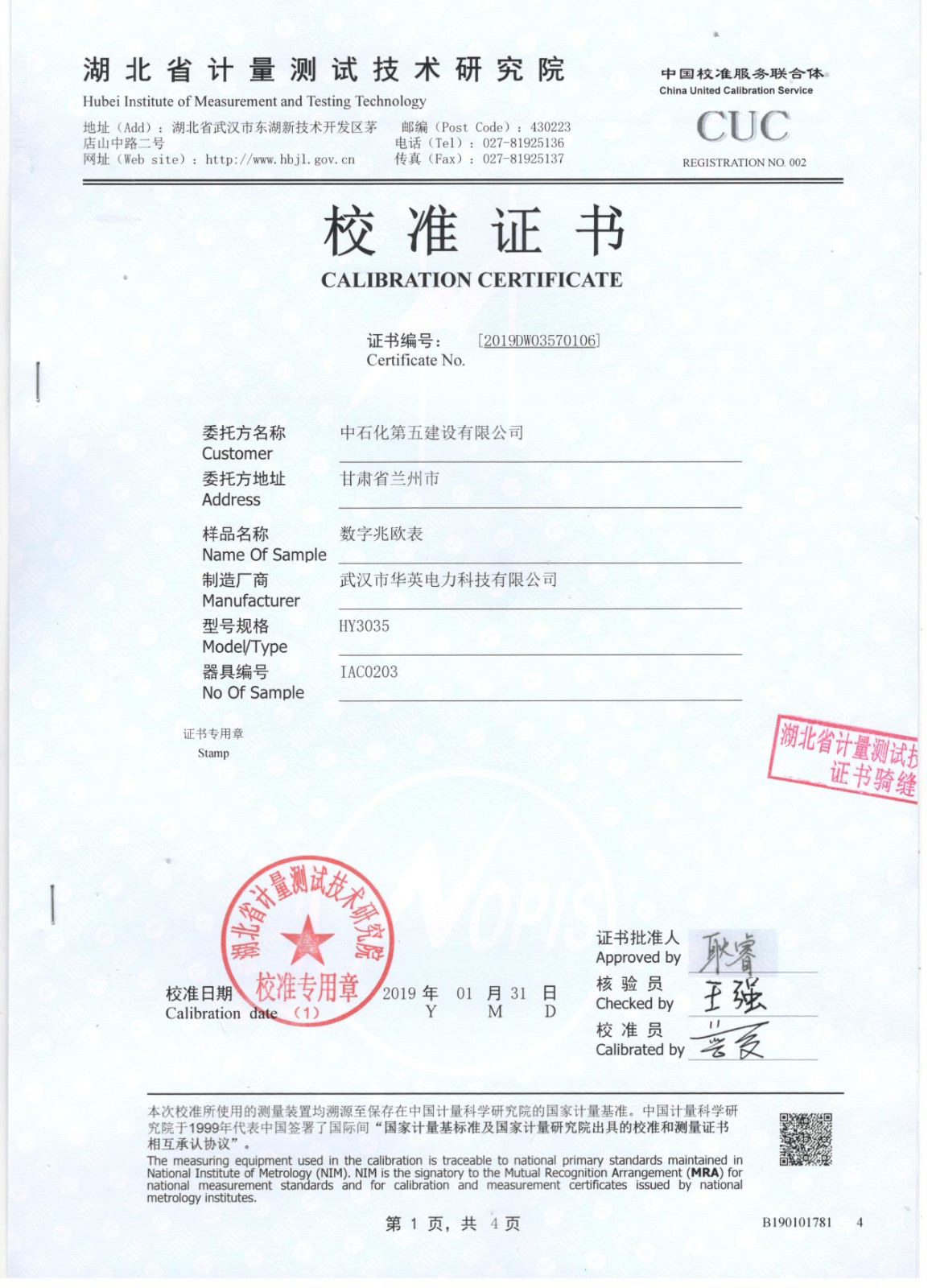

Calibration certificate of Insulation Resistance Tester HY3035 issued by Hubei Institute of Measurement and Testing Technology
